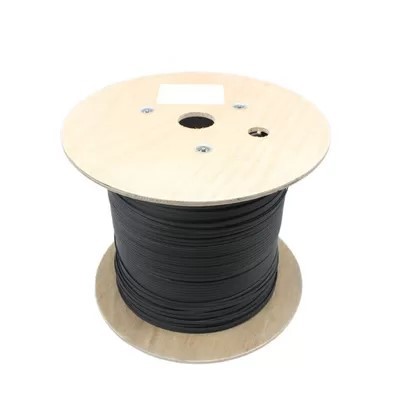

4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
Specifications
Brand Name :
MingTong
Certification :
CE,FCC,ROHS,Anatel
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Self Supporting Fiber Optic Cable
Model NO. :
GJYXCH
Core Numbers :
4cores
Fiber :
Single Mode
Self-Supporting Strength Member :
Steel Wire
Applications :
Outdoor
HS Code :
854470000
Highlight :
Anatel Self Supporting Fiber Optic Cable, FTTH Self Supporting Fiber Optic Cable, 4cores Self Supporting Ftth Wire
Description
Anatel Self Supporting Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
4cores Self Supporting FTTH Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
Product Overview

Anatel Self Supporting Fiber Optic Cable FTTH Wire available in 1km and 2km per drum configurations. This 1-2-4 core self-supporting outdoor FTTH drop fiber cable comes with Anatel certification.

Construction

The optical fiber unit is positioned in the center with two parallel steel wires placed at the sides. An additional steel wire serves as the self-supporting strength member, completed with a black or color LSZH sheath.

Key Features
  • Two steel wires as strength members
  • Additional steel wire applied as supplementary strength member
  • Suitable for dropping in residential buildings with rat-proof function
  • Reliable and stable quality construction
  • Fiber with small bending radius (G.657) for excellent bending resistance
  • All-dry structure with superior bending resistance
  • Safe and reliable installation
  • Easy cable stripping without tools, simple fixation, low installation cost
  • Suitable for field termination or factory pre-connectorized
  • Low smoke, zero halogen, flame retardant sheath
  • Available fiber types: G652D, 50/125, 62.5/125, G657A, G657A2, OM3-150, OM3-300, OM4
  • Jacket materials: PVC, LSZH
Applications
  • Aerial dropping in separate residential buildings
  • Stable and reliable performance for long-span cable installation
Technical Specifications
Structure Parameters
Parameter Unit Value
Fiber count Fibers 2
Diameter mm 5.0×2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Test Datasheet - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Polarization Mode Dispersion (PMD) ≤0.2ps/km¹/²
Cable Cutoff Wavelength (λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Macro bend loss (30mm radius, 100 turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
