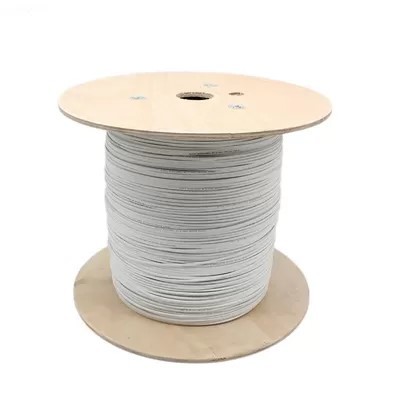

SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
FTTH Indoor Drop Cable
Fiber Type :
Single-Mode G657A1/G652D/G657A2
Number Of Fiber :
2
Construction :
Self-supporting With FRP
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH/PVC
Bending Radius :
10D/20D (mm)
Highlight :
G652D FTTH Indoor Drop Cable, G652D GJXH Indoor Drop Cable, G652D Single Mode gjxh cable
Description
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core SM GJXH FTTH Indoor Drop Cable Lightweight Design G657A G652D 1 2 4 Core
Product Overview

The GJXH FTTH Indoor Drop Cable is constructed with one or two single-mode fibers (G.657A1). The cable features a dielectric strength member made of single-stranded steel wire and a LSZH outer jacket. Designed specifically for indoor installation, this cable is ideally suited for connections between dome closures and small dwelling units, warehouses, and independent villas.

Key Features
  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission properties
  • Two parallel steel wire strength members ensure superior crush resistance to protect the fiber
  • Simple structure, lightweight design, and high practicability
  • Novel flute design for easy stripping and splicing, simplifying installation and maintenance
  • Low smoke, zero halogen, and flame retardant sheath
Applications
  • Ideal for FTTH (Fiber to the Home) applications
  • Horizontal cabling installations
Structural Specifications
Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 4.0*2.0
Weight Kg/km Approx. 17.7
Sheath color Black
Sheath material LSZH
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Bending Radius Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Technical Test Data - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Polarization Mode Dispersion (PMD) ≤0.2ps/km¹/²
Cable Cutoff Wavelength (λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Macro bend loss (30mm radius, 100 turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
