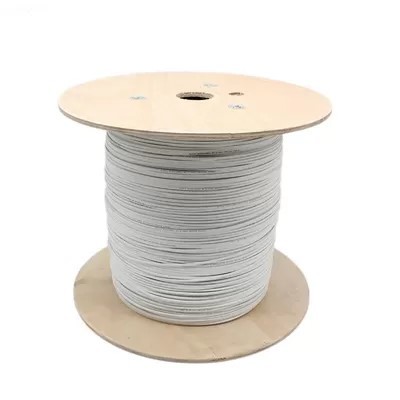

Self Supporting Fiber Drop Wire 2 Core 2 4 6 Core LSZH Jacket G657A1 Fiber Cable
Self Supporting Fiber Drop Wire 2 Core 2 4 6 Core LSZH Jacket G657A1 Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Product Name :
Outdoor FTTH Drop Cable
Fiber Type :
Single-Mode G657A1/G652D
Number Of Fiber :
2
Construction :
Self-supporting With FRP/Steel Messenger
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH
Tensile Strength :
100/200N
Highlight :
Ftth Drop Fiber Optic Cable, LSZH Drop Fiber Optic Cable, Steel Wire Ftth Drop Cable
Name :
Butterfly Drop Cable
Description
Self Supporting Drop Wire Fiber Optic 2 Core 2 4 6 Core G657A1 Fiber Cable

Outdoor self-supporting steel wire drop fiber optic cable available in 1, 2, 4, and 6 core configurations with G657A1 fiber. This FTTH drop wire cable is constructed with two single mode fibers and protected by a dielectric strength member made of three steel wires and a LSZH outer jacket.

Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling units, warehouses, and independent villas.

Self Supporting Fiber Drop Wire 2 Core 2 4 6 Core LSZH Jacket G657A1 Fiber Cable
Key Features
  • Robust and lightweight construction
  • Colour coded fibers for easy identification
  • LSZH jacket for internal use
  • Steel wire support for aerial applications
Applications
  • Outdoor aerial application
  • FTTH (Fiber to the Home) projects
  • High performance optical network operation
  • High speed optical routes in building infrastructure
Cable Specifications
Parameter Unit Value
Fiber count Fibers 2
Diameter mm 5.0×2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Technical Specifications - G.657A1 Fiber
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Zero Dispersion Wavelength 1300~1324nm
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Cladding Diameter 125±1μm
Coating Diameter 245±7μm
Mechanical Specifications Proof Test level ≥1.0%
Self Supporting Fiber Drop Wire 2 Core 2 4 6 Core LSZH Jacket G657A1 Fiber Cable Self Supporting Fiber Drop Wire 2 Core 2 4 6 Core LSZH Jacket G657A1 Fiber Cable Self Supporting Fiber Drop Wire 2 Core 2 4 6 Core LSZH Jacket G657A1 Fiber Cable
