Lightweight Construction FTTH Fiber Optic Drop Cable 1 2 4 Core GJYXFCH G657A1
Lightweight Construction FTTH Fiber Optic Drop Cable 1 2 4 Core GJYXFCH G657A1
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Product Name :
Fiber Optic Drop Cable
Fiber Type :
Single-Mode G657A1/G652D
Number Of Fiber :
2
Construction :
Self-supporting With FRP/Steel Messenger
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH
Tensile Strength :
100/200N
Highlight :
G657A1 Fiber Optic Drop Cable, GJYXFCH Fiber Optic Drop Cable, ROHS FTTH Drop Cable
Name :
Butterfly Drop Cable
Description
FTTH 1 2 4 Core GJYXFCH G657A1 Fiber Optic Drop Cable Indoor Outdoor
Product Overview
Lightweight Construction FTTH Fiber Optic Drop Cable 1 2 4 Core GJYXFCH G657A1

Outdoor self-supporting steel wire drop fiber optic cable available in 1, 2, 4, and 6 core configurations with G657A1 fiber. This FTTH outdoor drop cable is constructed with two single mode fibers and protected by a dielectric strength member made of three steel wires and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling units, warehouses, and independent villas.

Key Features
  • Robust and lightweight construction
  • Colour coded fibers for easy identification
  • LSZH jacket for internal use
  • Steel wire support for enhanced durability
Applications
  • Outdoor aerial application
  • Used in FTTH projects
  • High performance optical network operation
  • High speed optical routes in building
Cable Structure Specifications
Parameter Unit Value
Fiber count Fibers 2
Diameter mm 5.0*2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Technical Specifications - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Polarization Mode Dispersion (PMD) ≤0.2ps/km¹/²
Cable Cutoff Wavelength (λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Macro bend loss (30mm radius, 100 turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

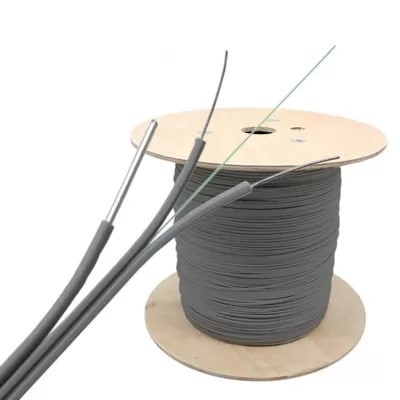

Product Images
Lightweight Construction FTTH Fiber Optic Drop Cable 1 2 4 Core GJYXFCH G657A1
Lightweight Construction FTTH Fiber Optic Drop Cable 1 2 4 Core GJYXFCH G657A1
Lightweight Construction FTTH Fiber Optic Drop Cable 1 2 4 Core GJYXFCH G657A1
