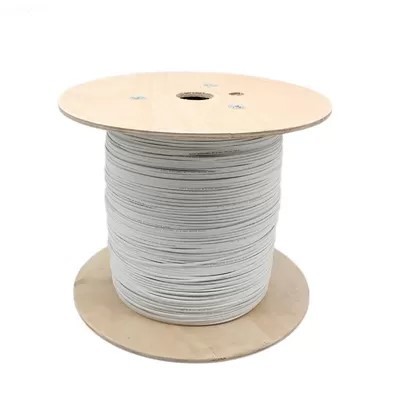

Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N
Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N
Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N
Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Product Name :
Indoor FTTH-drop Cable
Fiber Type :
Single-Mode G657A1/G652D
Number Of Fiber :
1
Construction :
Steel Messenger
Outer Jacket Materail :
LSZH
Tensile Strength :
100/200N
Highlight :
ISO9001 FTTH DROP CABLE, Plywood Drum FTTH DROP CABLE, 1km FIBER OPTIC Drop Cable
Name :
Butterfly Drop Cable
Description
G652D G657A1 GJXH LSZH Fiber Optic Drop Cable For Indoor Use
Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N

Factory FTTH drop cable 1 fiber G652D G657A1 optic cable GJXH for indoor use. FTTH indoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket for use in FTTH & FTTx applications between the building's main telecommunications room and the apartment / office consolidation point.

Features and Benefits
  • Easy to Strip
  • Direct Termination
  • Small Diameter
  • Complete Dry Design
  • Water Resistance
  • Halogen Free Fire Retardant / Low Smoke Zero Halogen
  • Flexible
  • Enforced with Non-Metallic Strength Members
Applications
  • FTTH (fiber to the home) indoor cabling and distribution
  • Access network and local area network (LAN)
  • Indoor Interconnect and Patch-cord Applications
  • Indoor FTTH applications horizontal and riser
  • Clipping to surfaces including skirting boards
  • Short distance external use with black LSZH jacket
  • Used end users directly cabling and Fiber optic communication system
Structure Specifications
Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 4.0*2.0
Weight Kg/km Approx.17.7
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Bending Radius Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70
Test Datasheet - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Optical Specifications Attenuation discontinuity ≤0.05 dB
Optical Specifications Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Optical Specifications Zero Dispersion Wavelength 1300~1324nm
Optical Specifications Zero Dispersion Slope ≤0.092ps/(nm2.km)
Optical Specifications Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Optical Specifications Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Optical Specifications Cable Cutoff Wavelength(λcc) ≤1260nm
Optical Specifications Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Optical Specifications Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Geometric Specifications Cladding Diameter 125±1μm
Geometric Specifications Cladding Non-Circularity ≤1.0%
Geometric Specifications Coating Diameter 245±7μm
Geometric Specifications Coating/Cladding Concentricity Error ≤8μm
Geometric Specifications Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N Indoor Use FTTH Drop Fiber Optic Cable G652D G657A1 GJXH LSZH Sheath 100N
