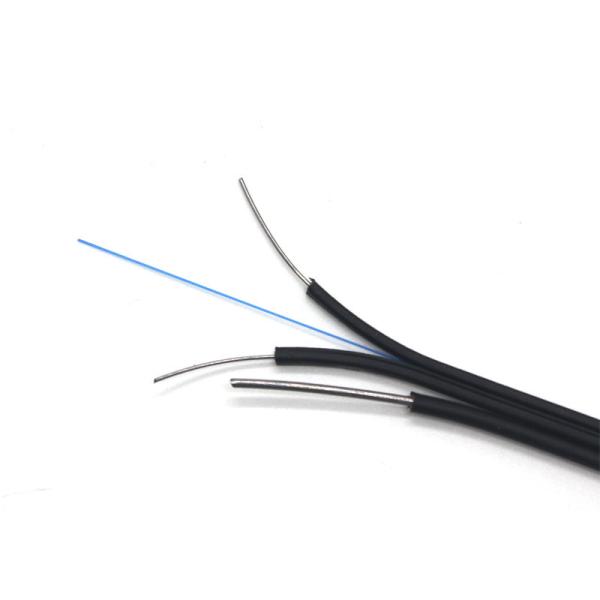

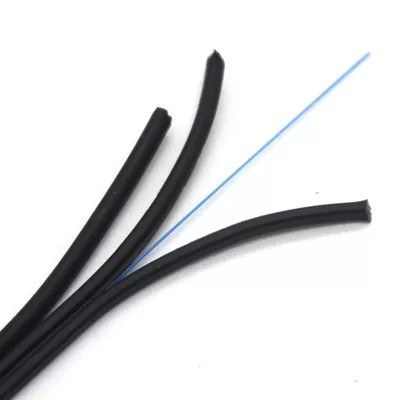

Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
FTTH Flat Drop Cable
Outdoor FTTH Drop Cable :
Single-Mode G657A1/G652D
Number Of Fiber :
1
Construction :
Self-supporting With FRP/Steel Messenger
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH/PVC
Package :
Wooden Drum
Highlight :
G652D flat drop fiber cable, G657A Flat FTTH Drop Cable, G657A Steel FTTH Drop Cable
Description
Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Support Structure FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Product Overview

Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire

Outdoor 1, 2, 4 Cores Single Mode G652D G657A Steel Wire Fiber Optic Flat FTTH Drop Cable. The FTTH drop cables feature flame retardant cable jacket with supporting wire and internal strengthening members for structural support. Designed with a special structure for easy fiber extraction, these cables are ideal for direct installation in residential and commercial environments, particularly suited for homes and offices.

Key Features
  • Suitable for indoor or duct application
  • Easy jacket removal without special tools
  • Self-support structure
  • Excellent crush and impact resistance
  • Flame Retardant LSZH jacket is applied
  • ITU-T G.657 fiber is available
  • Available from 1 to 8-fiber counts
Applications
  • Access network, fiber to the home
  • Used end users directly cabling
  • Outdoor cabling and distribution
Structural Specifications
Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 5.0*2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Technical Test Data - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Polarization Mode Dispersion (PMD) ≤0.2ps/km¹/²
Cable Cutoff Wavelength (λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Macro bend loss (30mm radius, 100turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
