G657A1 LSZH Jacket FTTH Fiber Optic Drop Cable Fig 8 Self Supporting 2 Core
G657A1 LSZH Jacket FTTH Fiber Optic Drop Cable Fig 8 Self Supporting 2 Core
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Product Name :
Outdoor FTTH Drop Cable
Fiber Type :
Single-Mode G657A1/G652D
Number Of Fiber :
2
Construction :
Self-supporting With FRP/Steel Messenger
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH
Tensile Strength :
100/200N
Highlight :
OG657A1 FTTH Fiber Optic Drop Cable, LSZH FTTH Fiber Optic Drop Cable, CE FTTH Drop Cable
Description
2 Core G657A1 LSZH FTTH Fiber Optic Drop Cable Fig 8 Self Supporting Aerial Flat Drop Fiber Cable
Product Overview
G657A1 LSZH Jacket FTTH Fiber Optic Drop Cable Fig 8 Self Supporting 2 Core

Outdoor self-supporting steel wire drop fiber optic cable with two single mode fibers. The cable features a dielectric strength member made of three steel wires and a LSZH outer jacket. Designed for outdoor installation, this cable is ideal for connections between dome closures and small dwelling units, warehouses, and independent villas.

Key Features
  • Robust and lightweight construction
  • Colour coded fibers for easy identification
  • LSZH jacket for internal use
  • Steel wire support for enhanced durability
Applications
  • Outdoor aerial applications
  • FTTH (Fiber to the Home) projects
  • High performance optical network operations
  • High speed optical routes in buildings
Cable Structure & Specifications
Parameter Unit Value
Fiber count Fibers 2
Diameter mm 5.0×2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Technical Specifications - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
Macro bend loss (30mm radius, 100 turns) 1625nm ≤0.1 dB

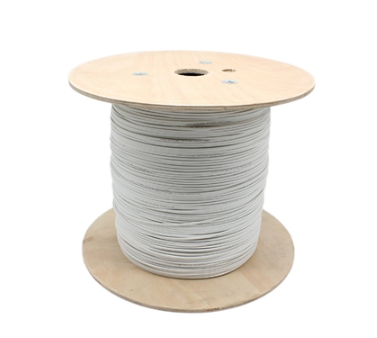

Product Images
G657A1 LSZH Jacket FTTH Fiber Optic Drop Cable Fig 8 Self Supporting 2 Core G657A1 LSZH Jacket FTTH Fiber Optic Drop Cable Fig 8 Self Supporting 2 Core G657A1 LSZH Jacket FTTH Fiber Optic Drop Cable Fig 8 Self Supporting 2 Core
