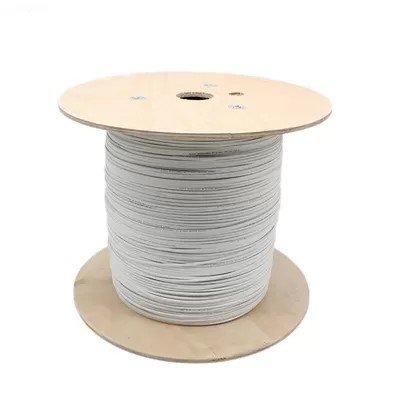

Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
6 Core Comms Cable
Fiber Type :
Single-Mode G657A1
Number Of Fiber :
1
Construction :
Steel Messenger
Bending Radius :
10D/20D (mm)
Outer Jacket Materail :
LSZH
Samples :
In Stock
Highlight :
10D LSZH Fiber Drop Wire, G652A Fiber Drop Wire, G652A 6 Core Comms Cable
Description
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Product Overview

FTTH indoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket. Ideal for use in FTTH & FTTx applications between the building's main telecommunications room and the apartment / office consolidation point.

Features and Benefits
  • Easy to Strip
  • Direct Termination
  • Small Diameter
  • Complete Dry Design
  • Water Resistance
  • Halogen Free Fire Retardant / Low Smoke Zero Halogen
  • Flexible
  • Enforced with Non-Metallic Strength Members
Applications
  • FTTH (fiber to the home) indoor cabling and distribution
  • Access network and local area network (LAN)
  • Indoor Interconnect and Patch-cord Applications
  • Indoor FTTH applications horizontal and riser
  • Clipping to surfaces including skirting boards
  • Short distance external use with black LSZH jacket
  • Used end users directly cabling and Fiber optic communication system
Structural Specifications
Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 4.0*2.0
Weight Kg/km Approx.17.7
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70
G.657A1 Test Datasheet
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km¹/²
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
