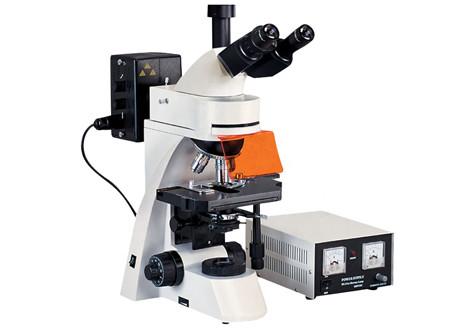

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope
Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope
Specifications
Brand Name :
Phidix
Model Number :
M15102
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Lead-time :
15-20 Work Days
Viewing head :
Trinocular Head Inclined
Eyepiece :
WF10X
Objectives :
4X, 10X, 40X, 100X (Oil)
Nosepiece :
Quadruple Nosepiece
Fluorescence Filter :
Blue /green/UV/V
Focusing :
Coarse Adjustment Focusing
Illumination :
Kohler Illumination System
Camera :
Optional
Description

40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope

M15102 40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope Infinity chromatic aberration correction optical system, with the newly upgraded Kohler lighting system makes clear and bright microscopic images at every magnification.

Features:

- It is an infinity fluorescence microscope with excellent optical system.

- It can be used to for biology, cytology, oncology, genetics and immunology research.

Item Description / Value
Optical system: Infinity achromatic optical system
Observation: Bright field and Fluorescence.
View tube:

Trinocular, 30 ° inclined, 360° rotation.

IPD adjustment: 54mm ~ 75mm.

Diopter adjustment: ± 5 diopters.
Eyepiece: High eye level wide field WF 10 × (Φ22mm).
Objective: Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X
Nosepiece: Standard: Four-position/quadruple. Optional: Five-position/quintuple
Stage: Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 210× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper.
Focusing: Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um.
Condenser: NA1.25.With aperture iris diaphragm.
Illumination system: High light long working life LED lamp for transmitted illumination, brightness adjustable.
Fluorescence Kit:

Mercury lamp: 100W/DC for fluorescence illumination. Fluorescence filter: Optional

Blue: 420-485nm.

Green: 460-550nm.

UV: 330-400nm.

V: 95-415nm.
Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional
Power supply: AC100-240V, 50/60Hz.

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope
