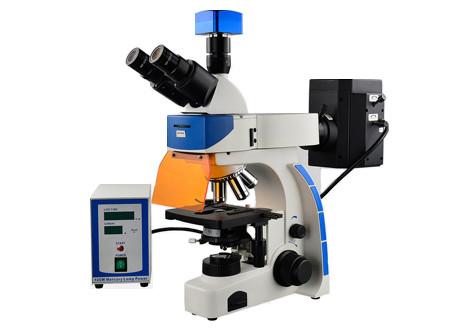

Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope
Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope
Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope
Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope
Specifications
Brand Name :
Phidix
Model Number :
M15109
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Eyepiece :
WF10X /20mm
Lead-time :
15-20 Work Days
Magnification Ratio :
40X-1000X
Objective :
4X/10X/40X/100X
Nosepiece :
4-Position
Light Source :
Fluorescence light 12V 100W mercury lamp Transmitted light 6V 20W
Description

Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope

what is a trinocular microscope used for?


M15109 Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope. M15109 series fluorescence microscopes are the new Biological with EPI-Fluorescence. The M15109 employs Infinity Corrected Optical System making the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio. These microscopes are configured for Bright-field and EPI-fluorescence but can also be outfitted with optional Phase contrast, Polarized light and Dark-field components. System modularity makes purchase and operation very affordable for colleges, universities, researchers and clinics.

Features:

  • It comes with four high quality plan achromatic objectives.
  • It is an ideal instrument for advanced research in biology, cytology, oncology, hematology, genetics, immunology, microchemistry and environmental protection.
  • It is also a perfect tool for sedimentary rock analysis and for the inspection of impurities in semiconductor industries.
  • With excellent infinity optical system and stable stage, it is the ideal microscope for life-science and medical research.
  • It can be used as transmitted light microscope.
  • It is widely applied in the biological pharmacy, medicine checking and measure.

ItemSpecificationM15109AM15109BM15109CM15109D
Observation Tube:Binocular head inclined at 30°● ●
Trinocular head inclined at 30° ● ●
Interpupillary distance:From 50-75mm●●●●
Eyepiece:WF10X/20mm eyepieces●●●●●●●●
Objectives:Infinity Plan Achromatic objectives 4X,10X, 40X(spring), 100X(spring, oil)●●●●
Stage:Mechanical stage with size 156x138mm, X-Y travel is 76x54mm●●●●
Focusing:Coaxial focusing knob, fine focusing is graduated in increment of 1um●●●●
Condenser:N.A. 1.25Abbe condenser with iris diaphragm●●●●
Illumination:

Fluorescence light 12V 100W

mercury lamp

Transmitted light 6V 20W

●●

Fluorescence light 5W LED

Transmitted light 3W LED

 ●●
Fluorescence Filter:CHROMA B/G(USA brand)●●
CHROMA B/G(USA brand) ●●
Power supply:100-240V●●●●
Standard accessories:Dust cover, fuse, power cord●●●●
Optional accessoriesWF10X/22mm eyepiece○○○○
20X plan objective○○○○
60X plan objective○○○○
Phase contrast parts○○○○
Dark field parts○○○○
C-mount adapter ○ ○
digital camera adapter ○ ○
digital camera eyepiece ○ ○
3M/5M/10M/16M/HD camera ○ ○

Note: ● means standard, ○ means optional
