Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research
Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research
Specifications
Brand Name :
Phidix
Model Number :
M15105
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X
Light source :
6V 20W Halogen Lamp
Description

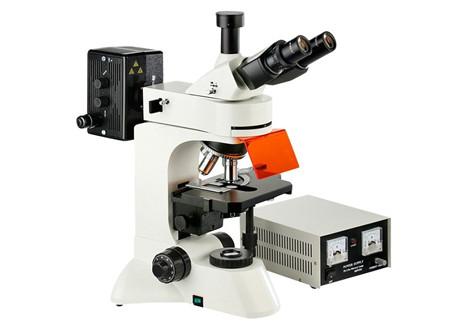

Trinocular Infinity EPI Fluorescence Microscope With Camera For Genetics Research And Immunology

M15105 Trinocular Infinity EPI Fluorescence Microscope With Camera For Genetics Research And Immunology. Fluorescence microscopy is a type of light microscope that works on the principle of fluorescence. It uses fluorescence instead of, or in addition to, scattering, reflection, and attenuation or absorption, to study the properties of organic or inorganic substances. M15104 is an epi-fluorescence microscope specially designed for life-science research and pathological research.

Features:

- Ideal for cytology, oncology, medical research and immunology research etc.

- Max magnification: 1000X.

- High cost-performance.

Item Description / Value M15105
View tube: Infinity view tube. Trinocular 30° inclined. Interpupillary distance From 50 to 75 mm. Dioptric shift on one tube. ●
Optical system: Infinity achromatic optical system, all lenses are multi fully coated optical galss. ●
Observation: Fluorescence, bright field ●
Eyepiece: High eye level wide field WF PL10x / 22mm ●
Fluorescence filter:

Fluorescence filter B group(Blue): excitation wavelength 450-490nm

Fluorescence filter G group(Green): excitation wavelength 495-555nm

 ●

Fluorescence filter UV group: excitation wave length 330-400nm

Fluorescence filter V group: excitation wave length 395-415nm

 ○
Fluorescence kits: Mercury lamp: 100W/DC, with power controller. ●
LED illuminator. ○
Illumination: Transmitted Illuminator: 6V/20W Halogen lamp, the brightness is adjustable. ●
LED lamp ○
Nosepiece: Quadruple ●
Objective:

Infinity Plan achromatic objective:

PL 4X/0.1, working distance: 19.8mm

PL 10X/0.25, working distance: 5.0mm

PLF L40X/0.65(spring), working distance: 0.42mm

PL 100X/1.25(spring, oil), working distance: 0.36mm

 ●
Stage:

Double layer mechanical stage with clicks and scales.

Can holder 2 slider.

Stage size: 210× 140mm, moving range: 75mm ×50mm.

XY movement accurancy: 0.1mm.

Coaxial control mechanism with right handles.

 ●

Focusing

mechanism:

Coaxial focus mechanism with knobs on both sides.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm.

Coarse movement: 28mm.

 ●
Condenser: Abbe condenser N.A.1.25 can move up and down. ●
Camera adapter: 0.5X or 1X C-Mount. ○
Camera:

6.3MP digital camera and software for win7/10.

Software can capture image, record video.

With Focus stacking and image stitching.

 ○
Accessories: Dust cover, manual, all necessnary cables. ●

Note: ● means standard, ○ means optional
