Epi-Fluorescence Science Lab Microscope 4X 100X Light Microscope Biology
Epi-Fluorescence Science Lab Microscope 4X 100X Light Microscope Biology
Specifications
Brand Name :
Phidix
Model Number :
M15104
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Lead-time :
15-20 Work Days
Optical system :
Infinity Plan Achromatic Optical System
Magnification :
40X-1000X
Eyepiece :
WF10X/18mm
Objective :
4X/10X/40X/100X
Nosepiece :
4-Position
Illumination :
Halogen Lamp and Mercury lamp
Condenser :
Abbe Condenser NA1.25
Camera :
Optional
Description

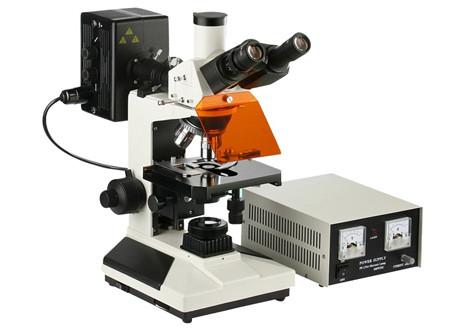

Epi-fluorescence Microscope For Life-science Research And Pathological Research

M15104 Epi-fluorescence Microscope For Life-science Research And Pathological Research. Fluorescence microscopy is a type of light microscope that works on the principle offluorescence. It uses fluorescence instead of, or in addition to, scattering, reflection, and attenuation or absorption, to study the properties of organic or inorganic substances. M15104 is an epi-fluorescence microscope specially designed for life-science research and pathological research.

Features:

- It is a high cost-performance fluorescence microscope.

- It can be used for cytology, oncology, medical research and immunology research etc.

Item Description / Value
Optical system: Plan achromatic optical system.
Observation: Bright field and Fluorescence.
View tube:

Trinocular, 30° inclined, 360° rotation.

IPD adjustment: 54mm ~ 75mm.

Diopter adjustment: ± 5 diopters.
Eyepiece: High eye level wide field WF 10 × (Φ18mm).
Objective: Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X
Nosepiece: Four-position/quadruple.
Stage: Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 160× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper.
Focusing: Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um.
Condenser: NA1.25.With aperture iris diaphragm.
Illumination system: High light long working life LED lamp for transmitted illumination, brightness adjustable.
Fluorescence Kit:

110W/DC Mercury lamp for fluorescence illumination.

Fluorescence filter: Optional

Blue: 420-485nm

Green: 460-550nm

UV :330-400nm

V: 95-415nm
Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional
Power supply: AC100-240V, 50/60Hz.

Epi-Fluorescence Science Lab Microscope 4X 100X Light Microscope Biology
