Trinocular Led Fluorescent Microscope Light 40X 1000X UIS Optical Microscope
Trinocular Led Fluorescent Microscope Light 40X 1000X UIS Optical Microscope
Specifications
Brand Name :
Phidix
Model Number :
M15107
Certification :
IATF16949, CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X/22mm
Magnification :
40X-1000X
Nosepiece :
5-Position, Quintuple
Description

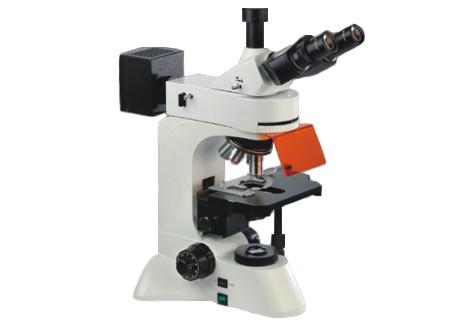

Trinocular LED EPI-Fluorescence UIS Optical Microscope

M15107 Trinocular LED EPI-Fluorescence UIS Optical Microscope. M15107 LED EPI-fluorescence microscope is equipped excellent UIS optical system and adopted modularization function design idea. The transmitted and epi-fluorescent illuminating light source is adopted high power & brightness LED. This kind of illumination has a lot of excellence, such as power consumption lower, good radiating heat effect, using safely and comfortably, lower cost of using and maintenance etc.

Features:

- Equipped with no magnification aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, can obtain excellent optical quality and operation performance.

- Can be used as transmitted light microscope.

- Widely applied in the biological pharmacy, medicine checking and measure.

-With excellent infinity optical system and stable stage, it is the ideal microscope for life-science and medical research.

Item Description / Value
Eyepiece: High eye level wide field WF10X (Φ22mm).
Objective:

Infinity plan achromatic objectives

PL 4X/0.10

PL 10X/0.25

PLF L40X/0.85 (spring) (No magnification spherochromatic aberration)

PL 100X/1.25 ( Spring, oil)
View tube: Trinocular, 30° inclined.
Epi-fluorescent Illumination system:

3W high brightness LED. Enable selecting monochromatic or binochromatic LED for light source, every monochromatic LED wave band: Green (520nm~530nm) Blue ( 460nm~470nm);

Fluorescence filters: B (Blue) and G (Green).
Focusing: Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine 2um.
Nosepiece: Five-position/quintuple (Backward ball bearing inner locating)
Stage: Double layer mechanical (Size: 210mmX140mm, moving range: 75mmX50mm)
Transmitted illumination system:

NA.1.25 Abbe condenser NA.1.25 Rack & pinion adjustable；

Blue filter and Ground glass；

Collector for LED illumination and integrated field diaphragm；

3W LED, 3W high brightness white LED, brightness adjustable.
Camera: Optional
