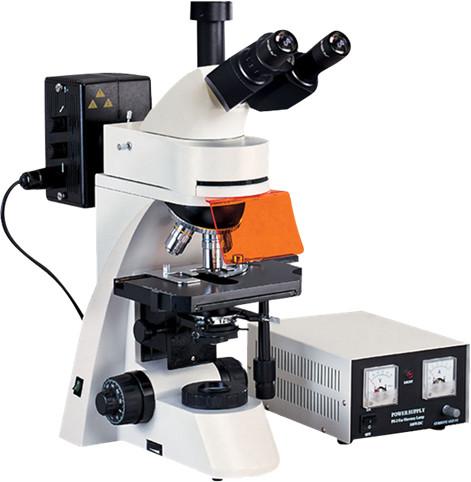

Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope
Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope
Specifications
Brand Name :
Phidix
Model Number :
M15111
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Lead-time :
15-20 Work Days
Optical system :
Infinity Achromatic Optical System
Magnification :
100X-1000X
Eyepiece :
WF10X/22mm
Objective :
10X/20X/40X/100X
Nosepiece :
Quadruple
Condenser :
Abbe condenser N.A.1.25
Stage :
Double layer mechanical stage
Camera :
Optional
Description

Trinocular EPI-Fluorescence Microscope 1000X with Multi Optical Correction Phase Contrast Objectives

M15111 EPI- fluorescent microscope is modular designed microscope based on the requirements of ergonomics. It’s widely used for biological pharmaceutical, medical inspection, disease prevention and other applications by bright field observation.

Features:

- Perfectly meet the requirements of ergonomics.

- With standard B and G filters, it can be used in fluorescence and bright field observation.

- Powerful on phase contrast observation by using infinity plan optical correction phase contrast objectives 10X/0.25 PHP, 20X/0.40 PHP, 40X/0.65 PHP, 100X/1.25 PHP.

Item Description / Value M15111
View tube: Infinity view tube. Trinocular 30° inclined. Interpupillary distance From 50 to 75 mm. Dioptric shift on one tube. ●
Optical system: Infinity achromatic optical system, all lenses are multi fully coated optical galss. ●
Observation: Fluorescence, bright field ●
Fluorescence filter:

Fluorescence filter B group(Blue): excitation wavelength 450-490nm

Fluorescence filter G group(Green): excitation wavelength 495-555nm

 ●
Fluorescence kits: Mercury lamp: 100W/DC, with power controller. ●
LED illuminator. ○
Illumination: Transmitted Illuminator: Halogen lamp ●
Eyepiece: Wide-field WF10/22mm. ●
Nosepiece: Quadruple ●
Objective:

Infinity Plan Optical correction objective(for work with cover glass and without cover glass):

PL10X/0.25, PL20X/0.40, PL40X/0.65, PL100X/1.25(spring, oil).

 ●

Infinity Plan Optical correction Phase contrst objective:

10X/0.25 PHP, 20X/0.40 PHP, 40X/0.65 PHP, 100X/1.25 PHP

 ●
Stage:

Double layer mechanical stage with clicks and scales.

Can holder 2 slider.

Stage size: 210× 140mm, moving range: 75mm ×50mm.

XY movement accurancy: 0.1mm.

Coaxial control mechanism with right handles.

 ●

Focusing

mechanism:

Coaxial focus mechanism with knobs on both sides.

Tightness and height limitation of coarse regulation are

adjustable.

Fine adjustment accuracy: 0.002mm.

Coarse movement: 28mm.

 ●
Condenser: Abbe condenser N.A.1.25 can move up and down. ●
Camera adapter: 0.5X or 1X C-Mount. ○
Camera:

6.3MP digital camera and software for win7/10.

Software can capture image, record video.

With Focus stacking and image stitching.

 ○
Accessories: Dust cover, manual, all necessnary cables. ●

Note: ● means standard, ○ means optional
