Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Specifications
Brand Name :
PUNAISGD
Model Number :
ADSS-72B1.3-60m
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ADSS-72B1.3-60m
Application :
Telecom Comunication
Strength member :
kevlar
Jacket color :
Black Color
Packing :
Wooden drum
Number of conductors :
72 cores
Fiber type :
G652D
Outer sheath :
PE/AT,AT/PE,PE
Span :
60
Name :
ADSS Fiber Optic Cable
Description
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier

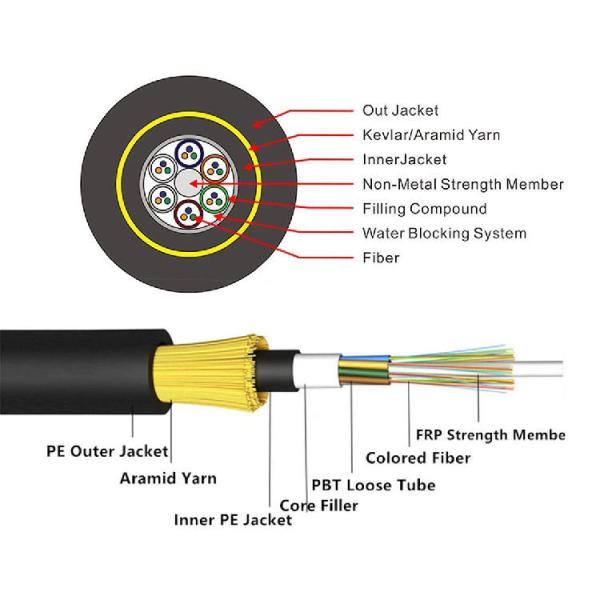

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound.
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.It is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics

1.Good mechanical and temperature performance.
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backdrops.
3.Aramid yarn as strength making cable have excellent tensile strength performance.4.Large span lengths and the largest span is over 1000m.
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
What is ADSS All Dielectric Self Supported Optical Cable?

Aramid Yarn G652D ADSS Communication Fiber Optic Cable features a loose-jacketed stranded structure. Single-mode or multimode optical fiber is jacketed into a high-modulus plastic loose tube filled with water-repellent compound. The tube (with filling rope) is twisted around a central nonmetallic FRP reinforcement to form a compact circular cable core. The core is filled with water-blocking material, reinforced with aramid fiber, and finished with a polyethylene or electric trace-resistant outer sheath.

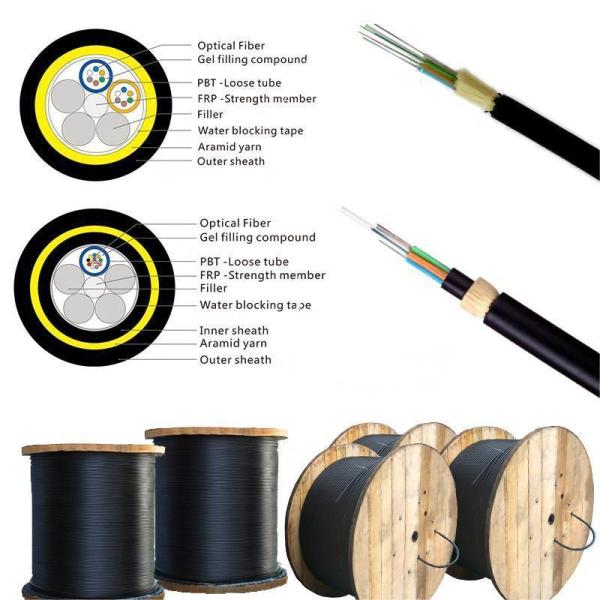

ADSS Cable Variants
  • Single sheath: FRP + Aramid yarn + Outer sheath
  • Double sheath: FRP + Inner sheath + Aramid yarn + Outer sheath
Optical Characteristics
Item Contents Value
Fiber Count 24 48
72 96
Loose Tube No. of tubes*fiber per tube 4*6
4*12 6*12
Outer Diameter(mm) 2.1 2.5
Attenuation @850nm ≤3.0dB/km
@1300nm ≤1.0dB/km
@1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Bandwidth @850nm ≥500MHZ.km
Numerical aperture 0.200±0.015NA
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Our Manufacturing Facility
Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Frequently Asked Questions
Why choose us?

We are a manufacturer based in Guangzhou, China, operating since 2011. Our products are sold to domestic markets with a workforce of 11-50 employees dedicated to quality production.

How do we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspections before shipment to ensure consistent quality standards.

Can you send products to my country?

Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics arrangements.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we will provide competitive pricing and produce samples for approval.

What services do we provide?

We offer various delivery terms (FOB, CIF, EXW), accept multiple currencies (USD, EUR, JPY, etc.), and provide flexible payment options (T/T, L/C, PayPal, etc.). Our team communicates in English and Chinese.
