12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable
12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable
12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable
12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
ASU-8B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ASU-8B1.3
Application :
Telecom Comunication
Strength member :
frp *2pcs*0.7mm
Jacket color :
Black Color/Others
Number of conductors :
4-12
Span :
80 120
Warranty Period :
25 years
Hs Code :
854470000
Sample :
yes
Istallation :
Aerial
Strengthening Structure :
FRP Strength Member
Central Strength Member :
FRP
Custom :
Customized available
Name :
ADSS Fiber Optic Cable
Description
Bundle Tube Type All Dielectric ASU Self-Supporting Optical Cable

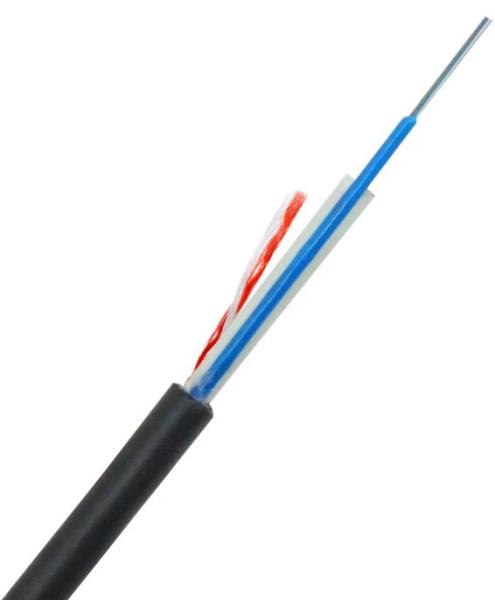

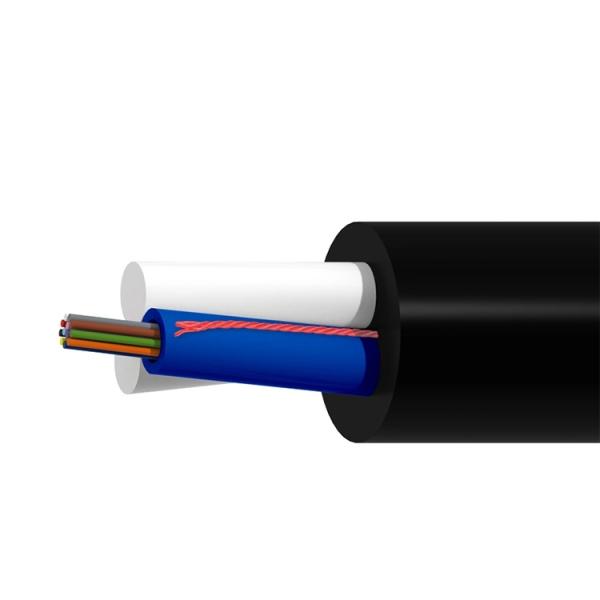

The structure of the optical cable is designed to connect 250 μm optical fibers. The fibers are inserted into a loose tube made of high modulus material, which is then filled with waterproof compound. The loose tube and FRP are twisted together using SZ. Water blocking yarn is added to the cable core to prevent water seepage, and then a polyethylene (PE) sheath is extruded to form the cable. A stripping rope can be used to tear open the optical cable sheath.
12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable

Product Features

The unique second-layer coating and stranding technology provide sufficient space and bending resistance for optical fibers, ensuring that the fibers in the electrical and cable have good optical performance.
Resistant to high and low temperature cycles, resulting in anti-aging and a longer lifespan.

Accurate process control ensures good mechanical and temperature performance.
High-quality raw materials ensure a long service life for cables.

Optical Characteristics

Fiber TypeAttenuation1310nm MFD(Mode Field Diameter)Cable Cut-off Wavelength λcc(nm)
@1310nm(dB/KM)@1550nm(dB/KM)
G652D≤0.36≤0.229.2±0.4≤1260
G657A1≤0.36≤0.229.2±0.4≤1260
G657A2≤0.36≤0.229.2±0.4≤1260
G655≤0.4≤0.23(8.0-11)±0.7≤1450
50/125≤3.5 @850nm≤1.5 @1300nm//
62.5/125≤3.5 @850nm≤1.5 @1300nm//

Technical Parameters

Fibre CountSpan (m)Cable Diameter
(mm) ±0.3		Cable Weight
(kg/km) ±5.0		Tensile Strength (N)Crush Resistance (N/100mm)Bend Radius (mm)
Long TermShort TermLong TermShort TermDynamicStatic
1-12806.65060015001000200020D10D
1-121207.66280020001000200020D10D
16-24807.56060015001000200020D10D
16-241208.26580020001000200020D10D

Application

Power Line, dielectric needed or small span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
TransportationInstallationOperation
-40℃~+70℃-20℃~+60℃-40℃~+70℃

Standard

YD/T 1155-2001

Packing And Mark

OYI cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.
