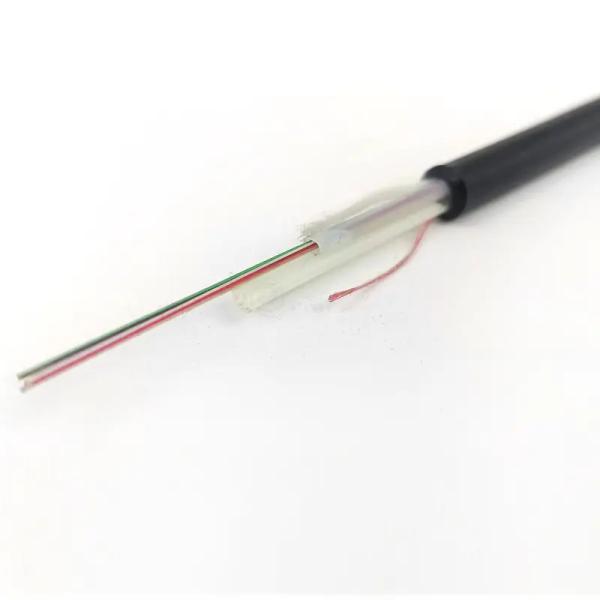

ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
ASU-6B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ASU-6B1.3
Application :
Telecom Comunication
Strength member :
frp *2pcs
Jacket color :
Black Color/Others
Number of conductors :
4-12
Span :
80 120
Warranty Period :
25 years
Hs Code :
854470000
Sample :
yes
Istallation :
Aerial
Strengthening Structure :
FRP Strength Member
Central Strength Member :
FRP
Custom :
Customized available
Name :
ADSS Fiber Optic Cable
Description
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable


PRODUCT SPECIFICATIONS
ITEMS
UNITS
SPECIFICATION
Fiber Type

G652D
Attenuation
dB/km
Before Cable
After Cable
1310nm ≦ 0.34
1550nm ≦ 0.21
1310nm ≦ 0.35
1550nm ≦ 0.22
Chromatic Dispersion
ps/nm.km
1310nm ≦ 3.5
1550nm ≦ 18
1625nm ≦ 22
Attenuation Uniformity
dB/km
0.1
Point Discontinuities
dB
≤ 0.05
Zero Dispersion Slope
ps/n㎡.km
0.093
Zero Dispersion Wavelength
nm
1300~1324
PMDQ Link Design 1550
ps/km1/2
≤ 0.1
Cut-off Wavelength(λcc)
nm
≤ 1260
Attenuation vs. Bending(60mm*100turns)
dB
≤ 0.1 at 1625 nm
(60mm * 100turns)
Mold Field Diameter
μm
9.2±0.4 @ 1310nm
10.4±0.5@ 1550nm
Core-Clad Concerntricity
μm
≤ 0.6
Cladding Diameter
μm
125 ± 1
Cladding Non-circularity
%
≤ 1
Coating Diameter
μm
245 ± 5
Proof Test
Gpa
≥ 0.69

ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable


Optical Characteristics
Cable Type
Fiber Count
Cable Diameter (mm)
Cable Weight (kg/km)
Tensile Strength long/short term (N)
Crush Resistance long/short term (N)
Bending Radius Static/Dynamic (mm)
ASU
2-12
7.0
60
600/1500
300/1000
10D/20D
GYXTW
14-24
8.0
72
600/1500
300/1000
10D/20D


ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable



ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable


ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable


ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable


ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
