Specifications
Brand Name :
PUNAISGD
Model Number :
ADSS-72B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ADSS-72B1.3-100m
Model No :
All Dielectric Cable
Strength Member :
Aramid Yarn
Cable Model :
single jacket 100m Span
Package :
Wooden Drum/Customized
Cable Weight :
200 kg/km
Installation Method :
Aerial
Life Expectancy :
30 Years
Fiber Type :
Single-mode G.652D
Outer Diameter :
10.5mm
Name :
ADSS Fiber Optic Cable
Description

ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable


Description:

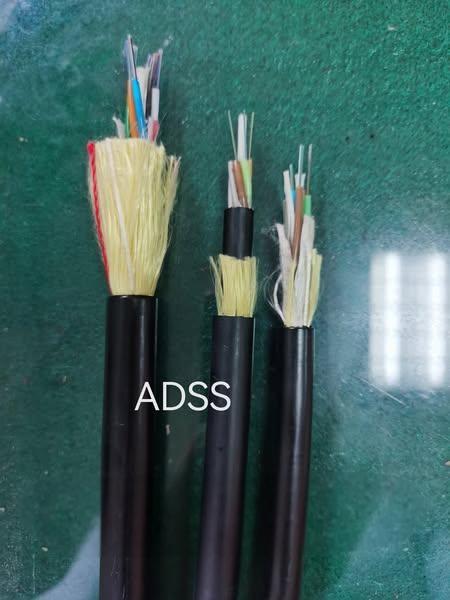

All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Application:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.

Features:
1.Non metallic structure provides good insulation, excellent lightning resistant.
2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
3.Anti-electromagnetism ability.
4.Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
5.Special AT (Anti-Track) outer sheath protection, strong anti-electro-corrosion ability.



ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable

ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable
PRODUCT SPECIFICATIONS
ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable

Fiber data
Fiber Type Attenuation 1310nm MFD


(Mode Field Diameter)

 Cable Cut-off Wavelength λcc(nm)
@1310nm(dB/KM) @1550nm(dB/KM)
G652D ≤0.36 ≤0.22 9.2±0.4 ≤1260
G657A1 ≤0.36 ≤0.22 9.2±0.4 ≤1260
G657A2 ≤0.36 ≤0.22 9.2±0.4 ≤1260
G655 ≤0.4 ≤0.23 (8.0-11)±0.7 ≤1450

Technical Parameters


Fiber Count Cable Diameter
(mm) ±0.5		 Cable Weight
(kg/km)		 100m Span
Tensile Strength (N)		 Crush Resistance (N/100mm) Bending Radius
(mm)
Long Term Short Term Long Term Short Term Static Dynamic
2-12 9.8 80 1000 2500 300 1000 10D 20D
24 9.8 80 1000 2500 300 1000 10D 20D
36 9.8 80 1000 2500 300 1000 10D 20D
48 9.8 80 1000 2500 300 1000 10D 20D
72 10 80 1000 2500 300 1000 10D 20D
96 11.4 100 1000 2500 300 1000 10D 20D
144 14.2 150 1000 2500 300 1000 10D 20D

Application

Power Line, dielectric needed or large span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation Installation Operation
-40℃~+70℃ -5℃~+45℃ -40℃~+70℃

Standard

DL/T 788-2016

PACKING AND MARK

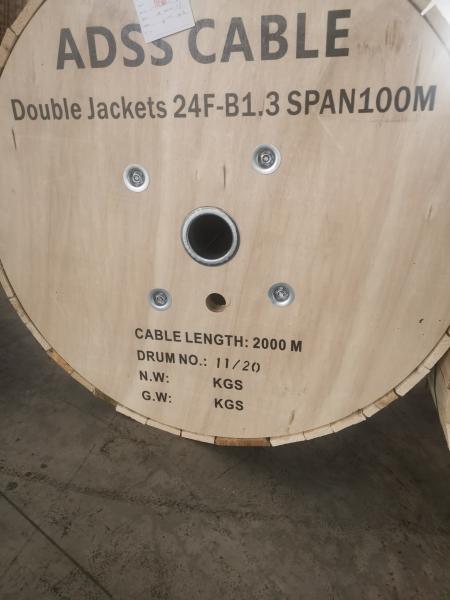

Fibercable puls cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.


ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable

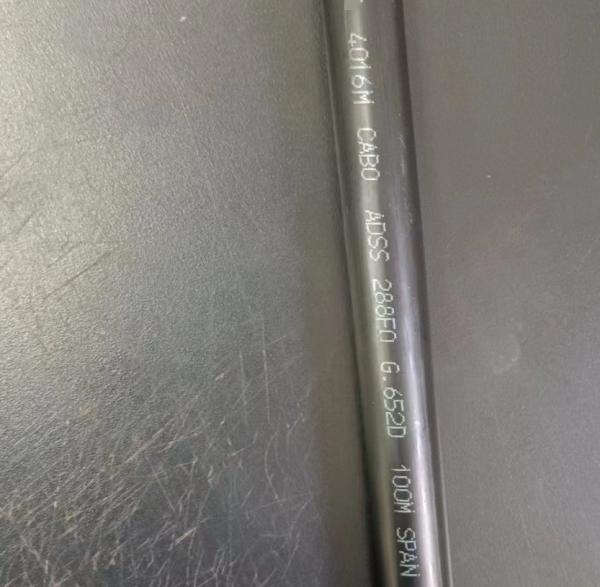

The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.
