Specifications
Brand Name :
PUNAISGD
Model Number :
ASU-12B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ASU-12B1.3
Application :
Telecom Comunication
Laying Mode :
Aerial
Jacket Material :
PE
Sample :
Free
Installation :
Self-supporting Aerial
Central Strength :
FRP
Flame Retardant :
Yes
Structure :
Loose tube
Name :
ADSS Fiber Optic Cable
Description
ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable

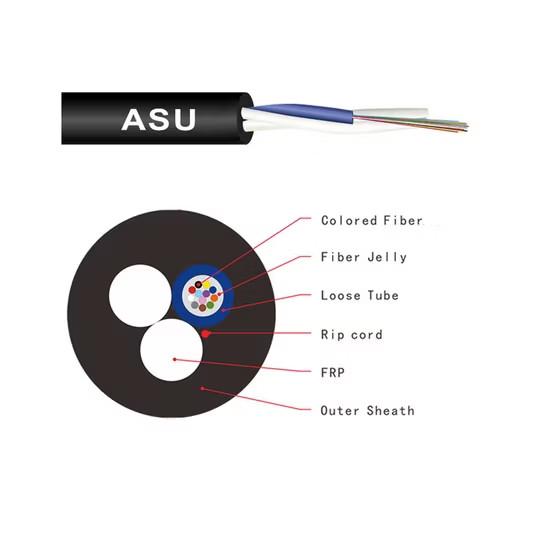

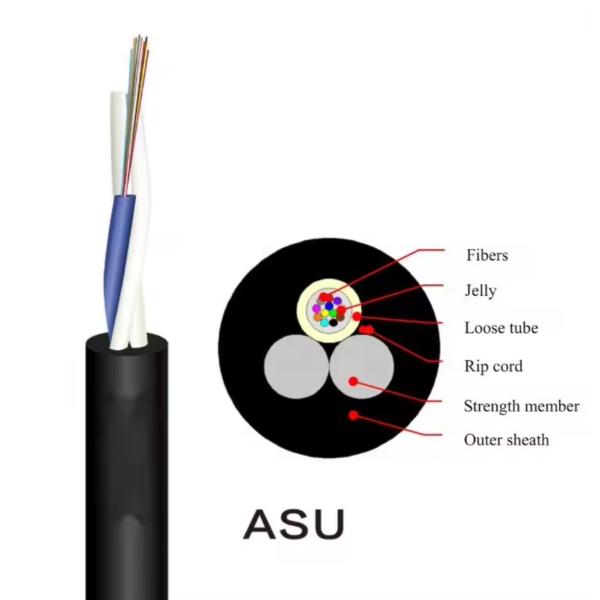

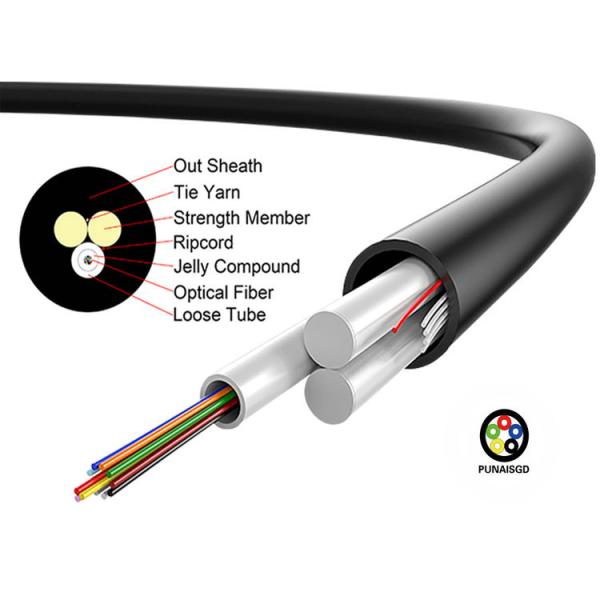

GYFFY is the structure of the access optical cable is to sheath 250 μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.


Our ASU self-supporting fiber optic cable distinguishes itself in the market with its compact, robust design, tailor-made for Internet service providers. Capable of accommodating up to 24 single-mode fibers in a single tube, this product provides an optimal and economical solution for optical network deployment challenges.


The ASU cable artfully blends sturdiness and practicality. Its aerial, compact, dielectric design is reinforced with two fiber-reinforced polymer (FRP) elements, ensuring resistance to electromagnetic interference and enhancing performance. Additionally, its superb protection against humidity and UV rays ensures durability. even under the harshest conditions.


In terms of installation, the ASU cable is self-supporting, catering to spans of 80, 100, and 120 meters based on customer requirements. It is supplied on high-strength, durable reels typically spanning 3 km, facilitating easy transportation and field handling.

ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable


PRODUCT SPECIFICATIONS
ITEMS
UNITS
SPECIFICATION
Fiber Type

G652D
Attenuation
dB/km
Before Cable
After Cable
1310nm ≦ 0.34
1550nm ≦ 0.21
1310nm ≦ 0.35
1550nm ≦ 0.22
Chromatic Dispersion
ps/nm.km
1310nm ≦ 3.5
1550nm ≦ 18
1625nm ≦ 22
Attenuation Uniformity
dB/km
0.1
Point Discontinuities
dB
≤ 0.05
Zero Dispersion Slope
ps/n㎡.km
0.093
Zero Dispersion Wavelength
nm
1300~1324
PMDQ Link Design 1550
ps/km1/2
≤ 0.1
Cut-off Wavelength(λcc)
nm
≤ 1260
Attenuation vs. Bending(60mm*100turns)
dB
≤ 0.1 at 1625 nm
(60mm * 100turns)
Mold Field Diameter
μm
9.2±0.4 @ 1310nm
10.4±0.5@ 1550nm
Core-Clad Concerntricity
μm
≤ 0.6
Cladding Diameter
μm
125 ± 1
Cladding Non-circularity
%
≤ 1
Coating Diameter
μm
245 ± 5
Proof Test
Gpa
≥ 0.69

ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable

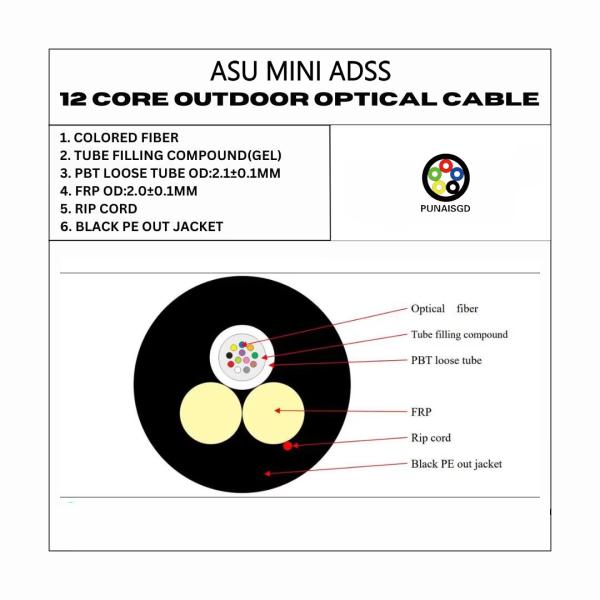

Optical Characteristics
Part code ASU-120-6F
Number of Fibers Unit 6 8 12 24
Number of fiber in tube Nos 6 8 12 24
Number of loose tube Nos 1 1 1 1
strength member Material FRP 2×2.2mm FRP


2×2.2mm

 FRP


2×2.2mm

 FRP


2×2.3mm
Loose tube Material PBT
Size 2.2mm
Outer sheath Material HDPE HDPE HDPE HDPE
Cable nominal Diameter MM ±0.2 7.2 7.2 7.2 8.0
Cable nominal weight Kg/Km ±5 45 45 45 47
Max. working tension



N 1500 1500 1500 1500
Max. crush resistance N 1000 (Short term) / 600 (Long term)
Min. bending radius
At full load 20 x Cable OD (including poles)


At no load 15 x Cable OD
Temperature range
Installation -0 -> +50 Operation -10 -> +70


ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable



ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable


ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable


ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable


ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable



Our Factory
ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable
ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable
ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable

FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
