ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
Specifications
Brand Name :
PUNAISGD
Model Number :
ASU-12B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ASU-12B1.3
Application :
Telecom Comunication
OD :
6.8MM
Laying Mode :
Aerial
Jacket Material :
PE
Sample :
Free
Installation :
Self-supporting Aerial
Central Strength :
FRP
Flame Retardant :
Yes
Name :
ADSS Fiber Optic Cable
Description
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll

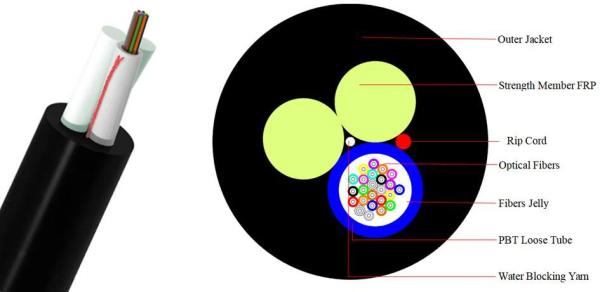

The 2~12 Fibers ASU Cable(AS80 and AS120) is a Self-Supported Optical Cable, It was developed to provide the connection between devices, being indicated for installation in urban and rural networks, in spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strength member as a traction element, thus avoiding electrical discharges in the networks. It is easy to handle and install, eliminating the need to use strings or grounding.

ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll


PRODUCT SPECIFICATIONS
ITEMS
UNITS
SPECIFICATION
Fiber Type

G652D
Attenuation
dB/km
Before Cable
After Cable
1310nm ≦ 0.34
1550nm ≦ 0.21
1310nm ≦ 0.35
1550nm ≦ 0.22
Chromatic Dispersion
ps/nm.km
1310nm ≦ 3.5
1550nm ≦ 18
1625nm ≦ 22
Attenuation Uniformity
dB/km
0.1
Point Discontinuities
dB
≤ 0.05
Zero Dispersion Slope
ps/n㎡.km
0.093
Zero Dispersion Wavelength
nm
1300~1324
PMDQ Link Design 1550
ps/km1/2
≤ 0.1
Cut-off Wavelength(λcc)
nm
≤ 1260
Attenuation vs. Bending(60mm*100turns)
dB
≤ 0.1 at 1625 nm
(60mm * 100turns)
Mold Field Diameter
μm
9.2±0.4 @ 1310nm
10.4±0.5@ 1550nm
Core-Clad Concerntricity
μm
≤ 0.6
Cladding Diameter
μm
125 ± 1
Cladding Non-circularity
%
≤ 1
Coating Diameter
μm
245 ± 5
Proof Test
Gpa
≥ 0.69

ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll

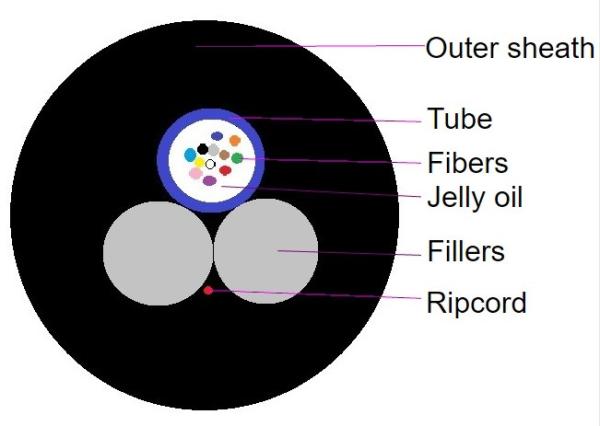

Optical Characteristics
Part code ASU-120-6F
Number of Fibers Unit 6 8 12 24
Number of fiber in tube Nos 6 8 12 24
Number of loose tube Nos 1 1 1 1
strength member Material FRP 2×2.2mm FRP


2×2.2mm

 FRP


2×2.2mm

 FRP


2×2.3mm
Loose tube Material PBT
Size 2.2mm
Outer sheath Material HDPE HDPE HDPE HDPE
Cable nominal Diameter MM ±0.2 7.2 7.2 7.2 8.0
Cable nominal weight Kg/Km ±5 45 45 45 47
Max. working tension



N 1500 1500 1500 1500
Max. crush resistance N 1000 (Short term) / 600 (Long term)
Min. bending radius
At full load 20 x Cable OD (including poles)


At no load 15 x Cable OD
Temperature range
Installation -0 -> +50 Operation -10 -> +70


ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll



ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll


ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll


ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll


ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll



Our Factory
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll
ASU mini ADSS 120-Span G.652.D Fiber Optic Cable 8Core OD 6.8 length 4 KM Roll

FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
