24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
ADSS-12B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :

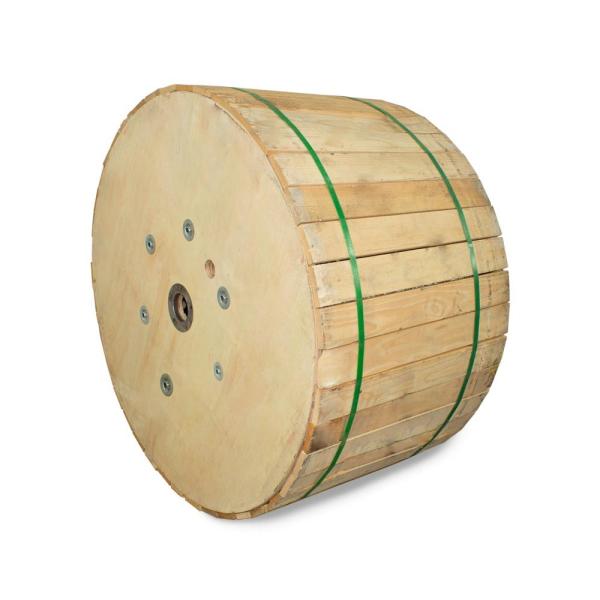

wooden drum
Type :
ADSS-12B1.3
Application :
Telecom Comunication
Strength member :
kevlar
Jacket color :
Black Color
Packing :
Wooden drum
Number of conductors :
12 cores
Fiber type :
G652D
Outer sheath :
PE/AT,AT/PE,PE
Span :
50 100 150
Name :
ADSS Fiber Optic Cable
Description
ADSS Fiber Optic Cable 24 threads span 100 4km adss fiber optic cables 18 core communication adss cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
1. What is ADSS All Dielectric Self Supported Optical Cable?

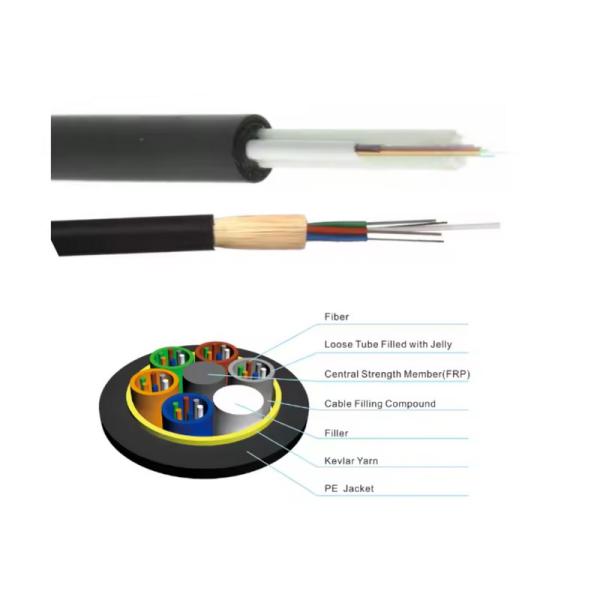

Aramid Yarn G652D ADSS Communication Fiber Optic Cable, adopts loose-jacketed stranded structure. Single-mode or multimode optical fiber is jacketed into a loose tube made of high-modulus plastic, and the tube is filled with water-repellent compound. Loose tube (filling rope) is twisted around the central nonmetallic reinforcement (FRP) to form a compact circular cable core, the gap in the cable core is filled with water-blocking filler, and the cable core is twisted with a layer of aramid fiber for reinforcement, and finally a polyethylene sheath or an electric trace-resistant outer sheath is extruded.

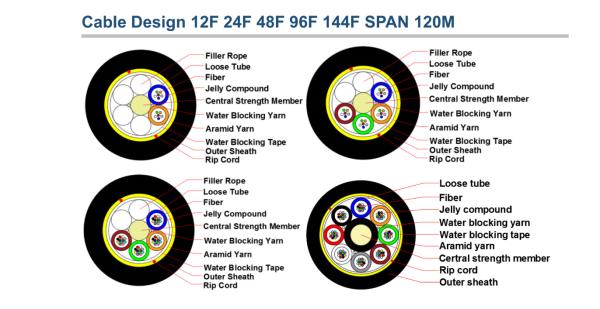

2. Different kinds of ADSS cable:
Single sheath: structure--FRP+Aramid yarn+Outer sheath
Double sheath: structure--FRP+Inner sheath+Aramid yarn+Outer sheath
PRODUCT SPECIFICATIONS
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
Optical Characteristics
Item
Contents
Value
Fiber Count
24
48
72
96
144
Loose Tube
No. of tubes*fiber per tube
4*6
4*12
6*12
8*12
12*12
Outer Diameter(mm)
2.1
2.5
Item
G.652
G.655
50/125um
62.5/125um
Attenuation
@850nm
≤3.0dB/km
≤3.2dB/km
@1300nm
≤1.0dB/km
≤1.2dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth
@850nm
≥500MHZ.km
≥200MHZ.km
@1300nm
≥1000MHZ.km
≥600MHZ.km
Numerical aperture
0.200±0.015NA
0.275±0.015NA
Cable cut-off wavelength
≤1260mm
≤1450mm
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
Our Factory
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
24 Threads Span 100 4km ADSS Fiber Optic Cable 18 Core Fiber Optic Communication Cable
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
