Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Specifications
Brand Name :
PUNAISGD
Model Number :
ADSS-144B1.3-200m
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Name :
ADSS Fiber Optic Cable 200m
Type :
ADSS-144B1.3-200m
Model No :
All Dielectric Cable
Strength Member :
Aramid Yarn
Cable Model :
single jacket 200m Span
Package :
Wooden Drum/Customized
Cable Weight :
200 kg/km
Installation Method :
Aerial
Life Expectancy :
30 Years
Fiber Type :
Single-mode G.652D
Outer Diameter :
10.5mm
Description

Outdoor Single/Double Jacket Aerial 144 Core G652D Span 200m ADSS Fiber Optic Cable

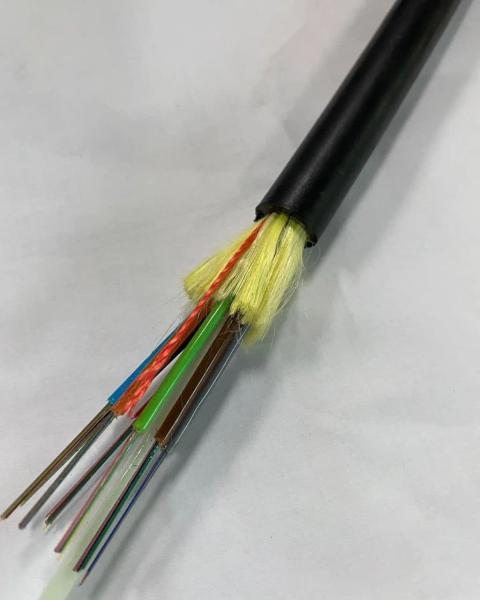

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn to reinforce . Finally, PE or AT outer jacket is extruded.

• It can be installed without power off.
• Easy to install with light weight and small diameter
• Customized span length (up to 1000 meters) suitable for different requirements
• Excellent mechanical and environmental performance
• Good water resistance performance
• Gel-filled loose tube protects the fiber well



Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor

Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
PRODUCT SPECIFICATIONS
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor

Fiber data
Fiber Type Attenuation 1310nm MFD


(Mode Field Diameter)

 Cable Cut-off Wavelength λcc(nm)
@1310nm(dB/KM) @1550nm(dB/KM)
G652D ≤0.36 ≤0.22 9.2±0.4 ≤1260
G657A1 ≤0.36 ≤0.22 9.2±0.4 ≤1260
G657A2 ≤0.36 ≤0.22 9.2±0.4 ≤1260
G655 ≤0.4 ≤0.23 (8.0-11)±0.7 ≤1450

Technical Parameters


Fiber Count Cable Diameter
(mm) ±0.5		 Cable Weight
(kg/km)		 100m Span
Tensile Strength (N)		 Crush Resistance (N/100mm) Bending Radius
(mm)
Long Term Short Term Long Term Short Term Static Dynamic
2-12 9.8 80 1000 2500 300 1000 10D 20D
24 9.8 80 1000 2500 300 1000 10D 20D
36 9.8 80 1000 2500 300 1000 10D 20D
48 9.8 80 1000 2500 300 1000 10D 20D
72 10 80 1000 2500 300 1000 10D 20D
96 11.4 100 1000 2500 300 1000 10D 20D
144 14.2 150 1000 2500 300 1000 10D 20D

Application

Power Line, dielectric needed or large span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation Installation Operation
-40℃~+70℃ -5℃~+45℃ -40℃~+70℃

Standard

DL/T 788-2016

PACKING AND MARK

Fibercable puls cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.


Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.

Factory veiw
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor


Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor


Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor


Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor



Our Factory
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
