These cables are typically used for Outside plant aerial self-supporting application in distribution as well as local and campus network loop architecture. These cables are used in aerial applications for medium to long span lengths including deployment along existing aerial right way and electric transmission towers. These cables are suitable for aerial-duct/underground transitions.

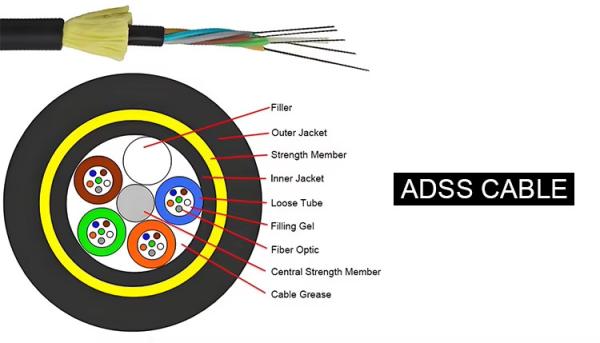

Dimensions of Cable Constructions
Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.5±0.2 | 80 |
6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
24 | 1+6 | 12 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.3 | 85 |
