48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
ADSS-6B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
ADSS-6B1.3
Number of Conductors :
6b1.3
Application :
Telecom Comunication
Strength member :
Aramid Yarn
Jacket color :
Black Color/Others
Packing :
Wooden Roller
Fiber type :
G652D,50/125
Outer sheath :
PE
Span :
50 100 150 m
Name :
ADSS Fiber Optic Cable
Description

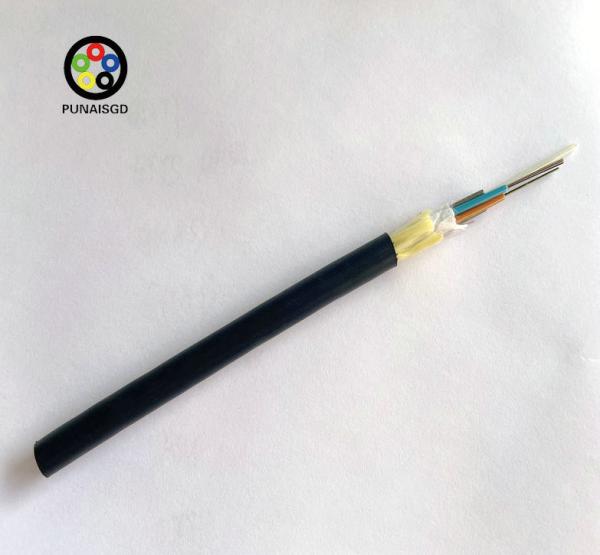

ADSS Fiber Optic Cable All-dielectric Self-supporting Cable 48 Core ADSS Fiber Optic Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
1. Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.

2. Non-metal structure, good insulation, anti-thunder.

3. Fine production technology, even force for aramid yarn, with superior stress flexibility.
4. It can be erected continuously. Life expectancy over 30 years.
Use PE/AT sheath, improved tracking resistance performance, light weight, small cable diameter, reduce the influence of ice and wind , and the load on the tower and support are reduced, with large span.
It has excellent tensile properties and temperature characteristics.
PRODUCT SPECIFICATIONS
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable

Dimensions of Cable Constructions

Fiber count

Structure

Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)

4

1+6

4

1.9±0.1

2.0/2.0

1.6

9.5±0.2

80

6

1+6

6

2.0±0.1

2.0/2.0

1.6

9.8±0.3

80

8

1+6

4

1.9±0.1

2.0/2.0

1.6

9.8±0.3

80

12

1+6

6

2.1±0.1

2.0/2.0

1.6

9.8±0.3

80

24

1+6

12

2.1±0.1

2.0/2.0

1.6

9.8±0.3

80

36

1+6

12

2.2±0.1

2.0/2.0

1.6

10.0±0.3

85
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
Our Factory
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
48 Core ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
