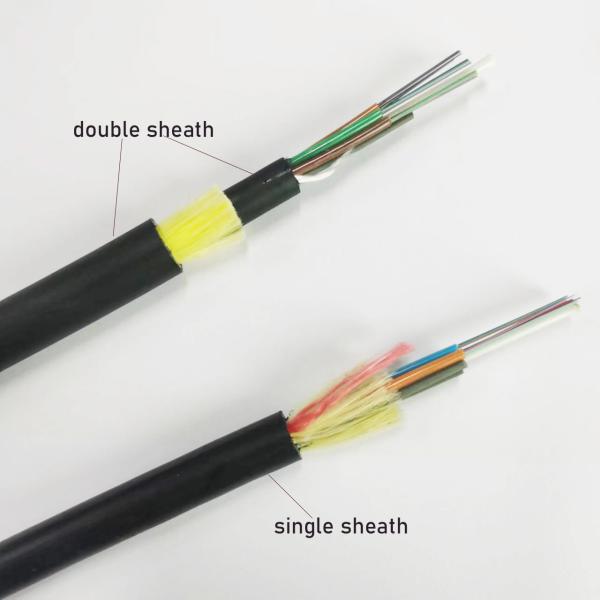

12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
Specifications
Brand Name :
PUNAISGD
Model Number :
ADSS-48B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
7days
Packaging Details :
wooden drum
Name :
ADSS Fiber Optic Cable
Type :
ADSS-48B1.3
Number of Conductors :
48b1.3
Application :
Telecom Comunication
Strength member :
Aramid Yarn
Jacket color :
Black Color/Others
Fiber type :
G652D,50/125
Outer sheath :
PE
Span :
50 100 150 m
Installation Method :
Aerial
Length :
3km/Drum
Strength Member Material :
FRP/ARMID YARN
Storage Temperature :
-40℃~+85℃
Cable Weight :
200kg/km
Cable Model :
Double Jacket ADSS
Package :
Wooden Drum/Customized
Description
ADSS Fiber Optic Cable Fibra Optica 12 24 48 Hilos ADSS Span 200 Adss 2 4 Core 6 24 48 96 Hilos 4km Single/Double Jacket

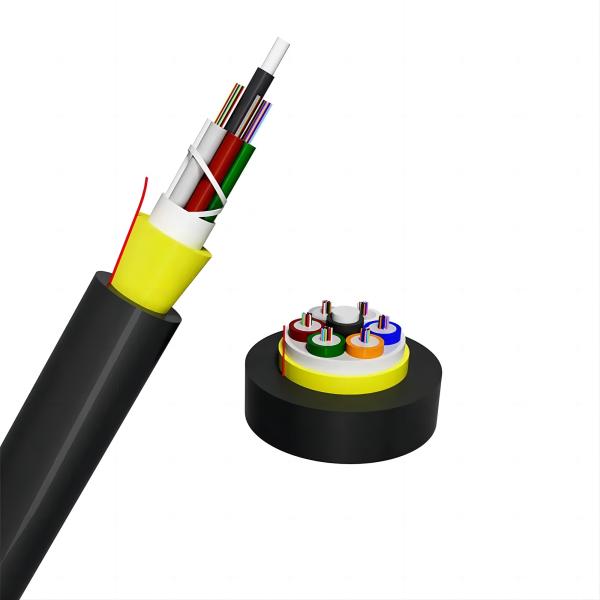

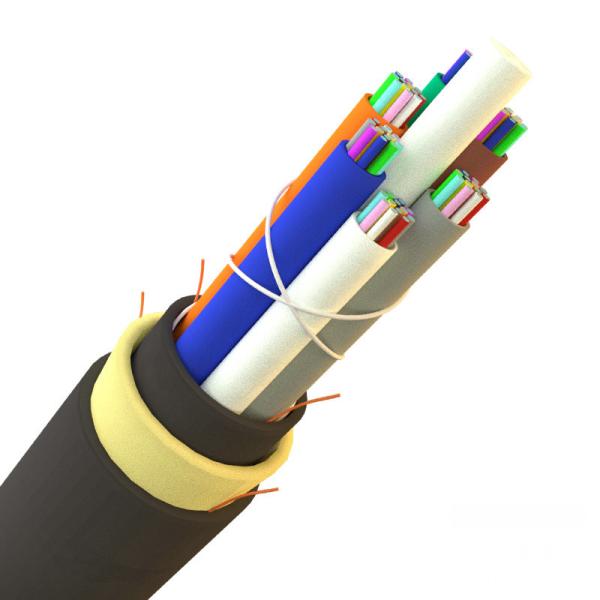

All-dielectric self-supporting optic cable is another name for ADSS fiber optic cable. There are two modes in optical fiber; single-mode and multimode fiber.

The self-supporting type indicates that the optic cable’s reinforcing member can withstand its weight and external load, has high mechanical strength, and can withstand the strong electric environment’s impact.

A comprehensive transmission circuit infrastructure with high-reliability performance is provided by the ADSS fiber optic cable system, which includes cables, suspension, dead-end, and termination enclosures.

12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
PRODUCT SPECIFICATIONS
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket

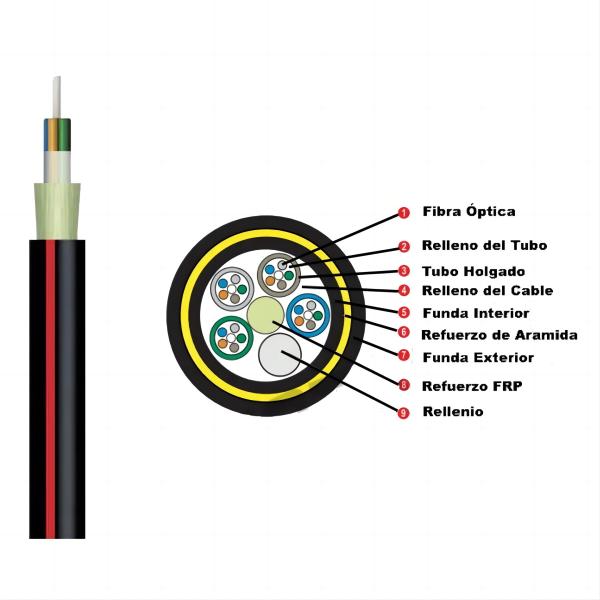

Dimensions of Cable Constructions

Fiber count

Structure

Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)

4

1+6

4

1.9±0.1

2.0/2.0

1.6

9.5±0.2

80

6

1+6

6

2.0±0.1

2.0/2.0

1.6

9.8±0.3

80

8

1+6

4

1.9±0.1

2.0/2.0

1.6

9.8±0.3

80

12

1+6

6

2.1±0.1

2.0/2.0

1.6

9.8±0.3

80

24

1+6

12

2.1±0.1

2.0/2.0

1.6

9.8±0.3

80

36

1+6

12

2.2±0.1

2.0/2.0

1.6

10.0±0.3

85
Factory veiw
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
Our Factory
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
12 24 48 Hilos ADSS Fiber Cable 200kg/km 2 4 Core 6 24 48 96 Hilos 4km Single / Double Jacket
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50
people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
