Specifications
Brand Name :
Limito
Model Number :
LBS276R-IC01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
2.76
Drive IC :
ST7701S
Interface :
MIPI 2Lane
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
4 White LED Parallel
Brightness :
450
Description

2.76 Inch 480x480 circular TFT display With High Speed MIPI Interface

LIMITO Circular TFT Display Description:

LBS276R-IC01 is a 480RGBX480 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backight.

LIMITO Circular TFT Display Specification:

LCD Size

2.76

Display Mode

Normally black

Resolution

480(H)RGB x480(V)

Pixel pitch

0.1461(H) x 0.1461(M)

Active area

⌀70.128

Module size

73.03(H) x 76.48(V) x2.26 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

16.7M

Luminance(cd/m2)

450 (TYP)Cd/m2

Viewing Direction
All View

Weight

21g

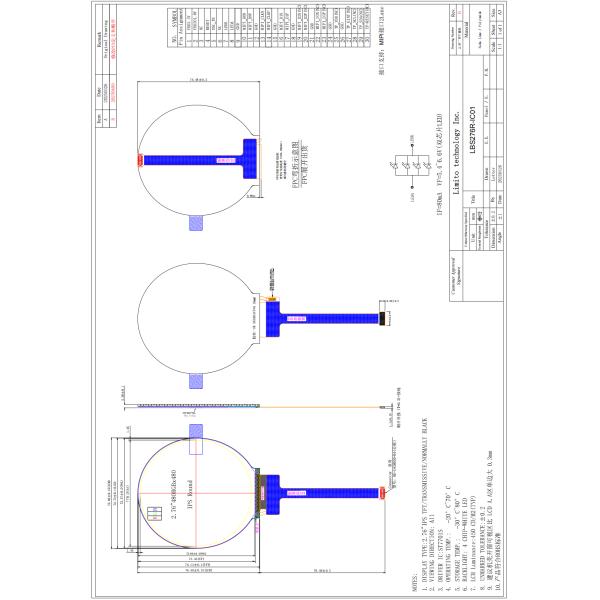

LIMITO Circular TFT Display Mechanical Drawing

2.76 Inch 480x480 Circular TFT Display With High Speed MIPI Interface

LIMITO Circular TFT Display Advantages:

  • Compact Design: The circular form factor allows for seamless integration into smartwatch designs, providing a modern and stylish look.

  • High Resolution: With a high pixel density, the display ensures sharp and vibrant visuals, enhancing the user experience with clear text and graphics.

  • MIPI Interface: The high-speed MIPI (Mobile Industry Processor Interface) allows for fast data transfer rates, ensuring smooth and responsive touch interactions.

  • Low Power Consumption: Optimized for energy efficiency, the display helps extend battery life, a critical factor for wearable devices.

  • Wide Viewing Angles: The TFT technology offers excellent color reproduction and wide viewing angles, making it easy to see information from various positions.

  • Durability: Designed to withstand everyday wear and tear, the display can support various environmental conditions, enhancing its longevity.

  • Customizedizedization Options: Manufacturers can Customizedizedize the display settings and features to meet specific application needs, providing flexibility in design.

  • Compatibility: The MIPI interface ensures compatibility with a wide range of processors and systems, facilitating easier integration into existing designs.

​​
