1.39 Inch Round TFT Display 360*360 Resolution TFT Lcd Module IC GC9B71
1.39 Inch Round TFT Display 360*360 Resolution TFT Lcd Module IC GC9B71
1.39 Inch Round TFT Display 360*360 Resolution TFT Lcd Module IC GC9B71
1.39 Inch Round TFT Display 360*360 Resolution TFT Lcd Module IC GC9B71
Specifications
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Brand Name :
Limito
Model Number :
LB139R-IC04
Place of Origin :
China
Diagonal Screen Size :
1.39
Drive IC :
GC9B71
Interface :
QSPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
3 White LED Parallel
Brightness :
600
Description

1.39 Inch Round TFT Display 360*360 Resolution TFT Lcd Module IC GC9B71

LIMITO IPS TFT LCD Display Description:

LB139R-IC04 is a 360RGBX360 dot-matrix TFT LCD module. This module is composed ofa TFT LCD Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.39

Display Mode

Normally black

Resolution

360(H)RGB x360(V)

Pixel pitch

0.09807(H) x 0.09807(V)

Active area

⌀35.3052

Module size

37.80(H) x 39.77(M) x1.48 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

16.7M

Luminance(cd/m2)

600 (TYP)Cd/m2

Viewing Direction
All View

Weight

3.8g

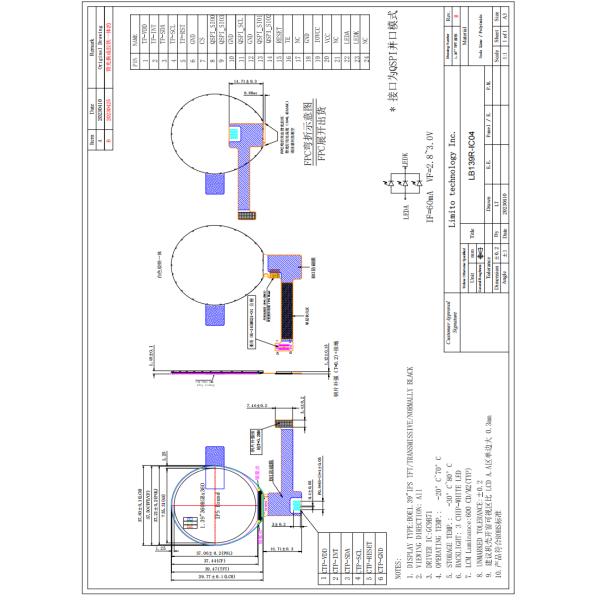

LIMITO IPS TFT LCD Display Mechanical Drawing

1.39 Inch Round TFT Display 360*360 Resolution TFT Lcd Module IC GC9B71

LIMITO IPS TFT LCD Display Advantages:

1. High Resolution

360x360 Pixels: Provides crisp and detailed images, enhancing user experience and visual quality.

2. Compact Size

Ideal for Wearables: The small form factor is perfect for smartwatches, fitness trackers, and other portable devices.

3. Vibrant Colors

Rich Color Reproduction: Capable of displaying a wide spectrum of colors, making graphics and UI elements visually appealing.

4. Wide Viewing Angles

Enhanced Visibility: IPS technology allows for consistent color and brightness from various angles, improving user interaction.

5. Easy Integration

Microcontroller Compatibility: The GC9B71 driver ensures straightforward integration with platforms like Arduino and Raspberry Pi.

6. Low Power Consumption

Energy Efficient: Designed for battery-operated applications, maximizing battery life for portable devices.

7. Touchscreen Capability

Interactive User Interface: If equipped with touch functionality, it allows for intuitive navigation and interaction.

8. Durable Construction

Robust and Reliable: Built to withstand various conditions, making it suitable for outdoor and rugged applications.
