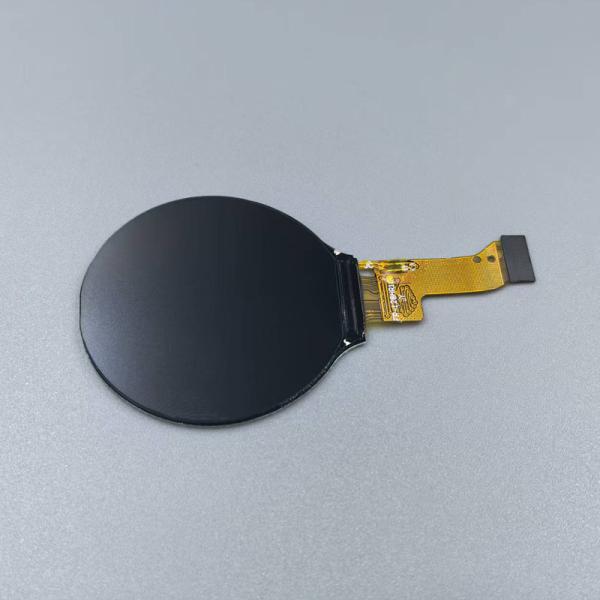

1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module
Specifications
Brand Name :
Limito
Model Number :
LH128R-IG01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.28
Drive IC :
GC9A01
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
2 White LED Parallel
Brightness :
350
Description

1.28'' Round Color Circular TFT Display 240x240 LCD GC9A01 Driver IPS LCD Module

LIMITO IPS TFT LCD Display Description:

LH128R-IG01 is a 240RGBX240 dot-matrix TFT LCD module. This module is composed ofa TFT LCD .

Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.28

Display Mode

Normally black

Resolution

240(H)RGB x240(M)

Pixel pitch

0.135(H) x 0.135(V)

Active area

⌀32.4

Module size

35.6(H) x 37.74(V)x1.55 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

350 (TYP)Cd/m2

Viewing Direction
All View

Weight

3.2g

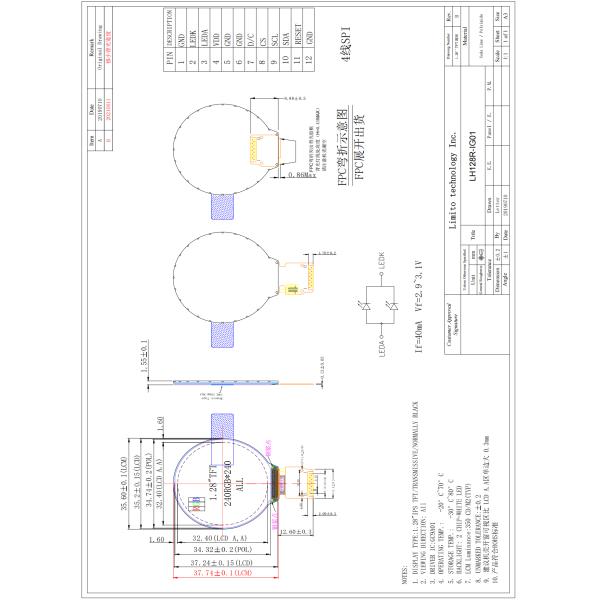

LIMITO IPS TFT LCD Display Mechanical Drawing

1.28 Inch Circle Lcd Screen Round TFT Display 240x240 GC9A01 Driver IPS LCD Module

LIMITO IPS TFT LCD Display Advantages:

1. High Resolution

240x240 Pixels: Provides clear and sharp images, enhancing visual quality for various applications.

2. IPS Technology

Wide Viewing Angles: IPS (In-Plane Switching) technology allows for consistent color reproduction and visibility from different angles.

3. Compact Size

Small Form Factor: Ideal for wearables, IoT devices, and applications where space is limited.

4. Rich Color Display

Vibrant Colors: Capable of displaying a wide range of colors, making it suitable for graphics-intensive applications.

5. Easy Integration

Compatible with Various Microcontrollers: The GC9A01 driver simplifies integration with popular platforms like Arduino and Raspberry Pi.

6. Low Power Consumption

Energy Efficient: Suitable for battery-operated devices, extending operational time.

7. Touchscreen Capability

Interactive Interface: If equipped with touch functionality, it allows for intuitive user interactions.

8. Robust Build

Durability: Designed to withstand various environmental conditions, making it reliable for outdoor applications.

9. Flexible Applications

Versatile Uses: Suitable for smartwatches, handheld devices, and other consumer electronics.
