Specifications
Brand Name :
Limito
Model Number :
LB099R-PF01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
0.99
Drive IC :
GC9107
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
2 White LED
Brightness :
550
Description

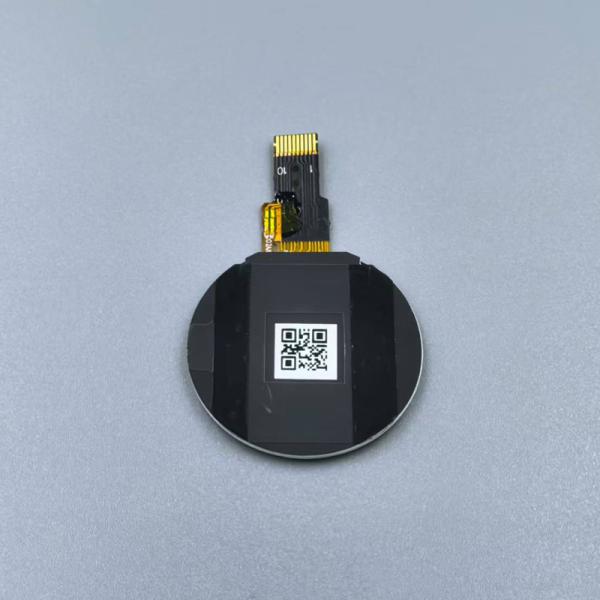

0.99" 550cd/㎡ GC9107 SPI 128RGBx115 TFT Screen Display LCD Module Circular Display

LIMITO IPS TFT LCD Display Description:

LB099R-PF01 is a 128RGBX115 dot-matrix TFT LCD module. This module is composed ofa TFT LCD
Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

0.99

Display Mode

Normally black

Resolution

128(H)RGB x115(V)

Pixel pitch

0.190(H) X 0.190(V)

Active area

24.36(H) X 21.89(V)

Module size

26.71(H) x 26.22(V)x1.86 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

550 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

LIMITO IPS TFT LCD Display Mechanical Drawing

0.99 Inch Circular TFT Module 550cd/㎡ GC9107 SPI 128RGBx115 TFT Screen Display

LIMITO IPS TFT LCD Display Advantages:

  • Compact Size: At 0.99 inches, this display is ideal for small devices, making it perfect for wearables and portable electronics.
  • High Brightness: With a brightness of 550 cd/m², it ensures excellent visibility in various lighting conditions, enhancing user experience outdoors and indoors.
  • High Resolution: The 128 RGB x 115 resolution provides clear and vibrant images, making it suitable for detailed graphics and text.
  • SPI Interface: The SPI interface allows for fast data transfer, ensuring smooth updates and responsiveness in applications.
  • Wide Viewing Angles: The display maintains color accuracy and brightness from multiple angles, allowing for flexible positioning.
  • Low Power Consumption: Designed for energy efficiency, it is suitable for battery-operated devices, helping to extend battery life.
  • Durable Design: Built to withstand daily use, it is resilient to environmental factors, ensuring long-term reliability.
  • Easy Integration: Compatible with various microcontrollers, simplifying the development process for engineers and hobbyists.
