1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology
1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology
1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology
1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology
1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology
1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology
Specifications
Brand Name :
Limito
Model Number :
LB139R-PC56F1
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.39
Drive IC :
GC9B71
Interface :
QSPI
Operating Temp :
-10℃~ + 60℃
Storage Temp :
-20℃~+ 70℃
Backlight :
3 White LED Parallel
Brightness :
550
Description

1.39 CTP Inch 360*360 LCD Panel Round Circular TFT Displays

LIMITO IPS TFT LCD Display Description:

LB139R-PC56F1 is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT
LCD Panel, driver ICs, FPC and a Backlight and a CTP unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.39

Display Mode

Normally black

Resolution

360(H)RGB x360(V)

Pixel pitch

0.09807(H) x 0.09807(V)

Active area

⌀35.3052

Module size

38.79(H) x 39.5(V) x4.085 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

550 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

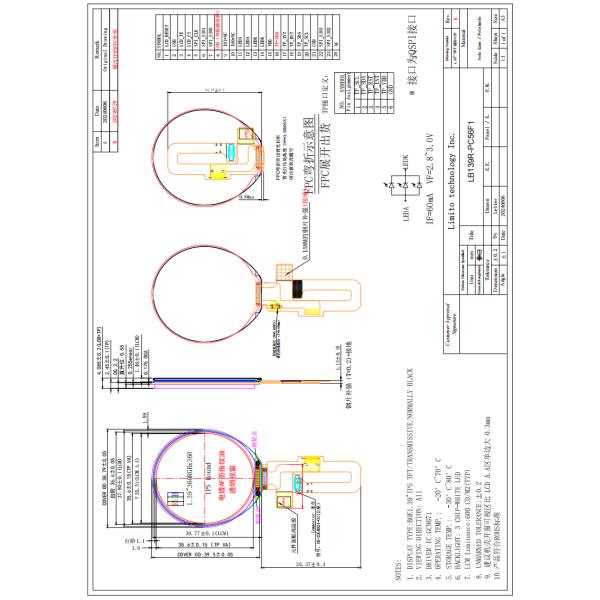

LIMITO IPS TFT LCD Display Mechanical Drawing

1.39 Inch Circular TFT Lcd Display 360*360 All View With IPS Technology

LIMITO IPS TFT LCD Display Advantages:

  • IPS Technology (Often Included): Many such displays utilize IPS (In-Plane Switching) technology, which offers wide viewing angles, excellent color reproduction, and high contrast, ensuring the image remains consistent and clear from various perspectives.
  • Versatility in Application: Beyond wearables, these modules can be used in smart home devices, industrial controls, and other applications where a compact, attractive, and functional display is needed.
  • Customizedizedization Potential: Manufacturers often offer Customizedizedization options for cover glass shape, FPC (Flexible Printed Circuit) design, touch panel integration (capacitive touchscreen is common), and backlight settings, allowing for tailored solutions.
