Specifications
Brand Name :
Limito
Model Number :
LB180R-IF06
Place of Origin :
China
Diagonal Screen Size :
1.8
Drive IC :
JD9855A
Interface :
QSPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
3 White LED Parallel
Brightness :
250
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

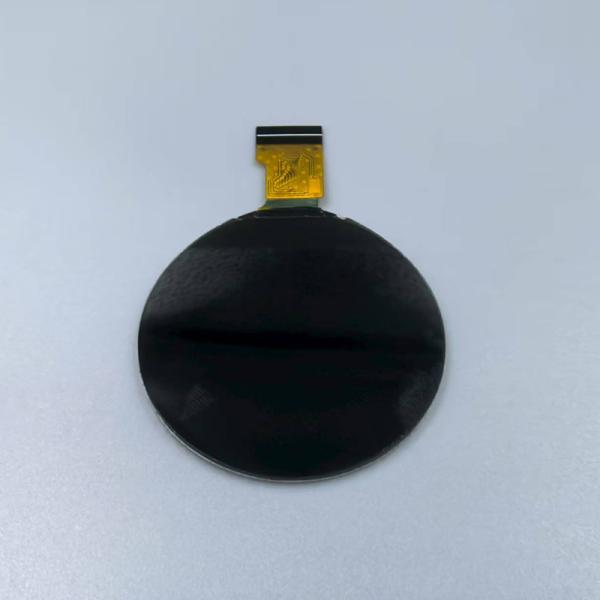

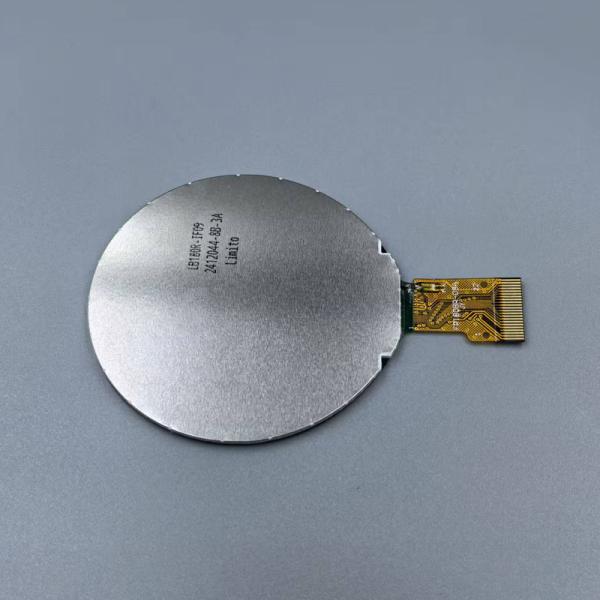

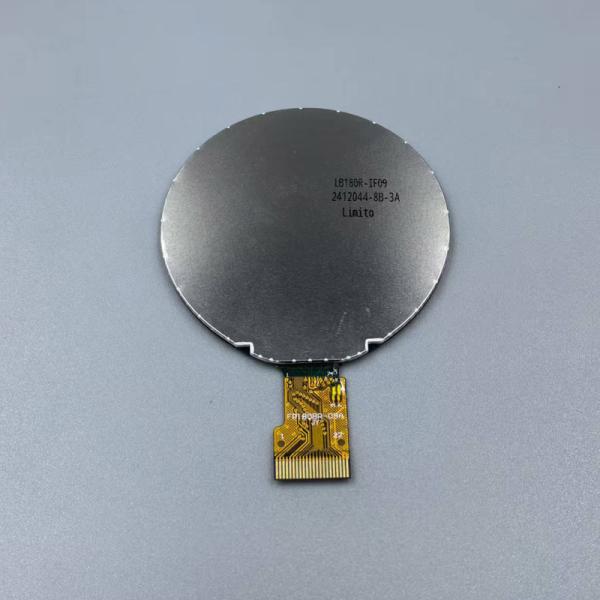

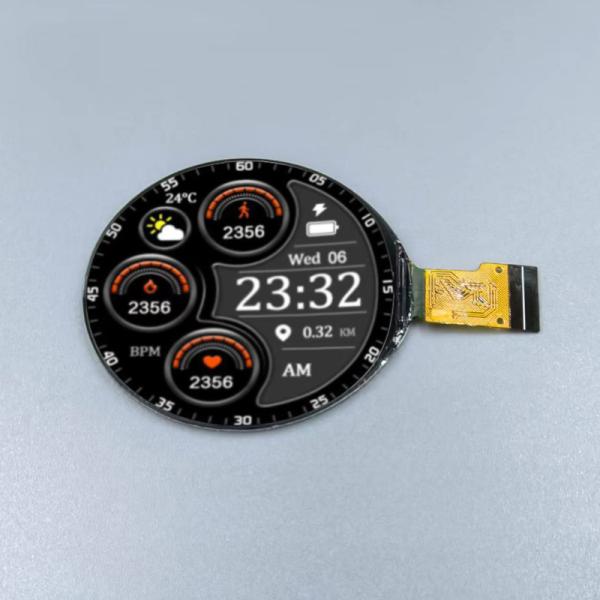

1.8" TFT LCD Round IPS Display 360*360 Driver IC JD9855A 16PIN QSPI Interface With Touch Screen

LIMITO IPS TFT LCD Display Description:

LB180R-IF06 is a 360RGBX360 dot-matrix TFT LCD module. This module is composed ofa TFT LCD
Panel, driver ICs, FPC and a Backlight

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.8

Display Mode

Normally black

Resolution

360(H)RGB x360(V)

Pixel pitch

0.1269(H) X 0.1269(V)

Active area

⌀45.684

Module size

48.08(H) x 49.95(V)x1.92 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

250 (TYP)Cd/m2

Viewing Direction
All View

Weight

7.6g

LIMITO IPS TFT LCD Display Mechanical Drawing

1.8 Inch Round IPS Display Circle Lcd Display 360*360 Driver IC JD9855A 16PIN QSPI Interface

LIMITO IPS TFT LCD Display Advantages:

  • High Resolution: The 360x360 resolution provides sharp, clear visuals, making it ideal for detailed graphics and text.
  • IPS Technology: In-Plane Switching (IPS) ensures excellent color reproduction and wide viewing angles, allowing for consistent visibility from different perspectives.
  • Compact Size: At 1.8 inches, this display is suitable for small devices, including wearables and portable electronics.
  • Touch Screen Functionality: The integrated touch screen allows for intuitive user interaction, enhancing the usability of applications.
  • Fast Data Transfer: The 16-pin QSPI interface enables high-speed data communication, ensuring smooth performance and quick updates.
  • Vibrant Colors: The TFT technology supports a wide color range, delivering bright and vivid images that enhance user engagement.
  • Durable Design: Built for reliability, this display can withstand various environmental conditions, ensuring longevity in everyday use.
  • Low Power Consumption: Designed for efficiency, it is suitable for battery-operated devices, helping to extend battery life.
  • Easy Integration: Compatible with various microcontrollers, making it user-friendly for developers and hobbyists.
