Specifications
Brand Name :
Limito
Model Number :
LH145R-PC01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.45
Drive IC :
SPD2010
Interface :
QSPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
3 White LED Parallel
Brightness :
450
Description

1.45 Inch Circular TFT Display 412x412 24PINS MIPI 450cd/㎡ Circle LCD Display

LIMITO IPS TFT LCD Display Description:

LH145R-PC01 is a 412RGBX412 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.45

Display Mode

Normally black

Resolution

412(H)RGB x412(M)

Pixel pitch

0.0897(H) x 0.0897(V)

Active area

⌀36.9564

Module size

39.36(H) x 41.53(M) x1.56 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

16.7M

Luminance(cd/m2)

450 (TYP)Cd/m2

Viewing Direction
All View

Weight

4.1g

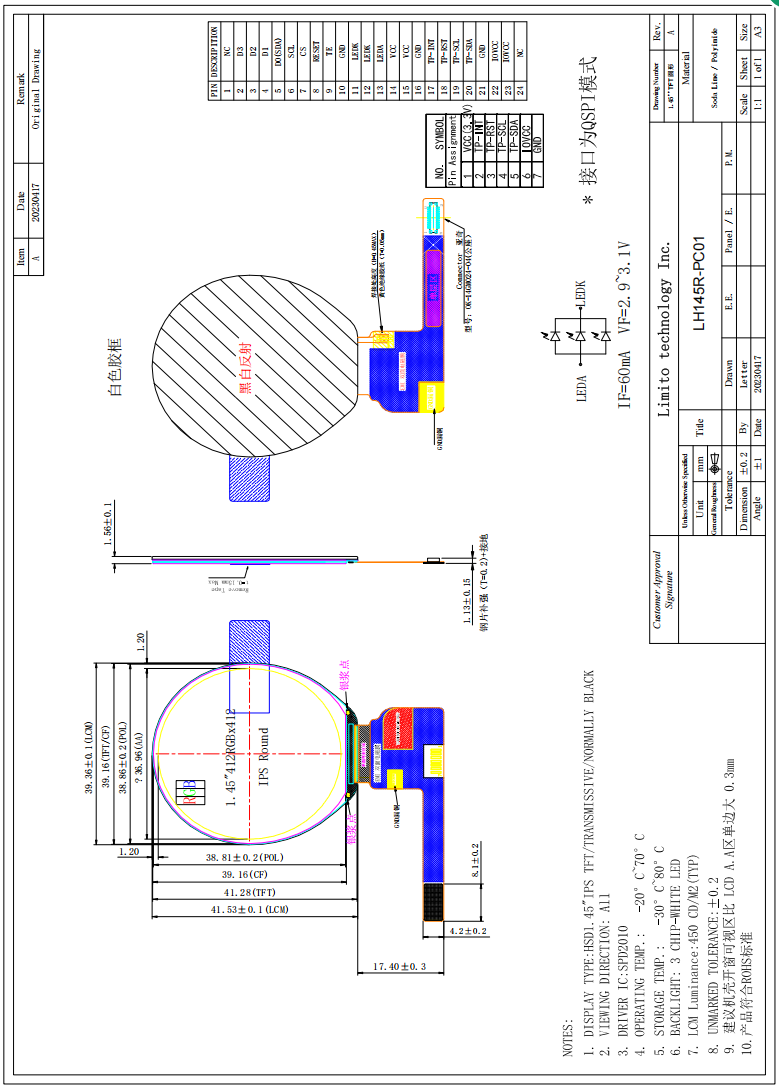

LIMITO IPS TFT LCD Display Mechanical Drawing

1.45 Inch Circular TFT Display 412x412 Pixels 24 PINS 450cd/㎡

LIMITO IPS TFT LCD Display Advantages:

  • Premium Aesthetics and Unique Form Factor: The circular design provides a modern, stylish, and distinctive look, making products stand out. This is highly desirable in consumer electronics where design differentiation is crucial.
  • Ideal for Wearables and Compact Devices: The size and shape are perfectly suited for smartwatches, fitness trackers, smart rings, small medical devices, and other IoT gadgets where space is at a premium and a round display enhances both functionality and user experience.
  • High Resolution for its Size (412x412): A 412x412 resolution on a 1.45-inch display results in a very high pixel density. This means incredibly sharp text, smooth graphics, and detailed images, leading to a premium visual experience. Compared to a 360x360 resolution, the 412x412 offers noticeably more pixels, allowing for finer details and smoother curves.
  • Enhanced User Experience: The high resolution and circular form factor allow for sophisticated graphical user interfaces (GUIs) that are intuitive and visually appealing, often resembling traditional watch faces or radial menus.
