Specifications
Model NO. :
WIND-SAW
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

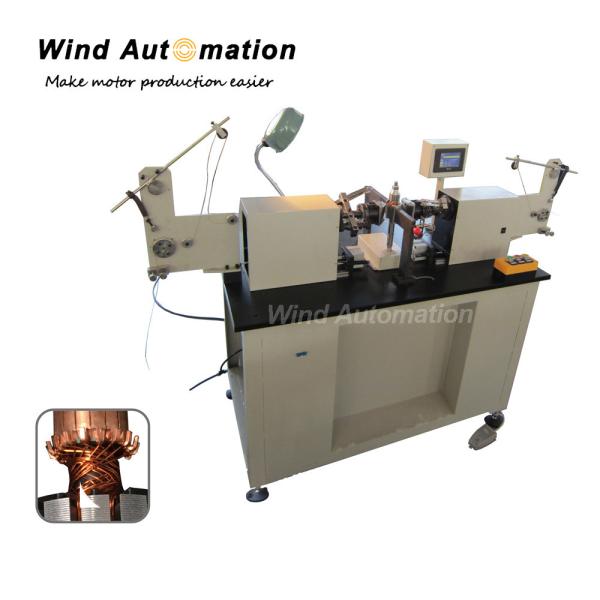

Armature Coil Winder for Power Tool Motor
Middle Size Armature Coil Winder for Power Tool Motor Production Performance

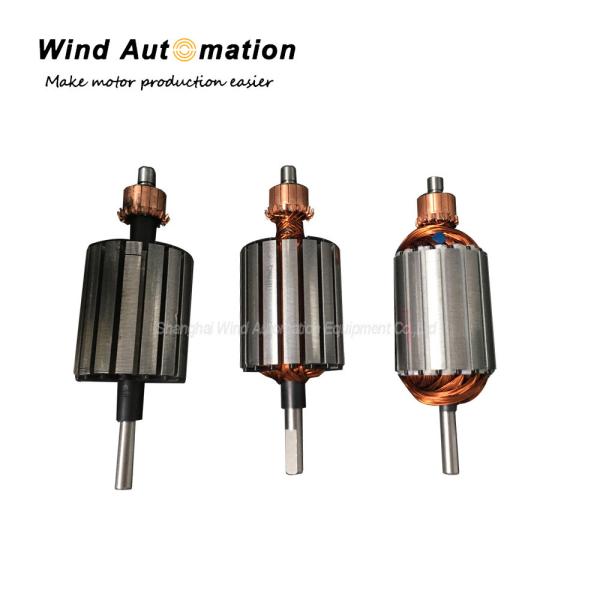

This machine is used to wind hook type commuator armature. Hooking should be done manuall. Clamping, winding, indexing will be done by machine automatically.

(1) Application

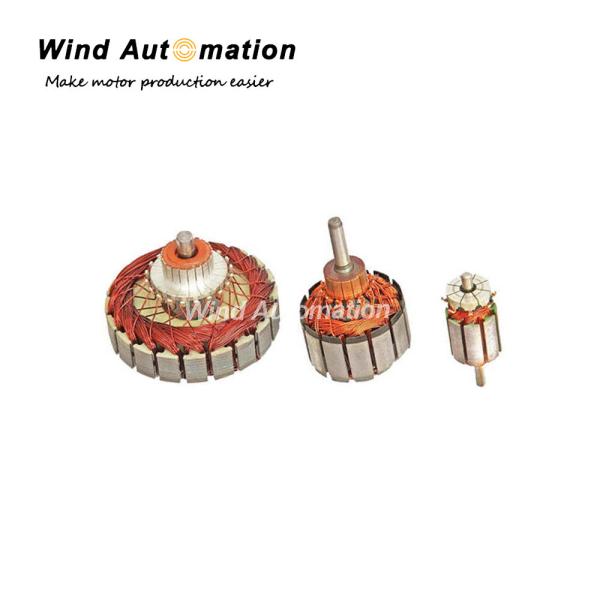

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(2) Specification
Wire Diameter 0.08-1.08mm
Flyer Speed 0-1400r/min
Flyer No. 2
Turn No. 0-9999
Power 0.8KW
Power supply 220V±10%, 50HZ

(3) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
