Specifications
Model NO. :
WIND-ODD-4
Customized Service :
Provided
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Armature Winding Machine For Micro Motor Rotor with 3 or 5 Slots
100 Sets/Year WIND-ODD-4 Armature Winding Machine for 3 or 5 Slots Micro Motor Rotor

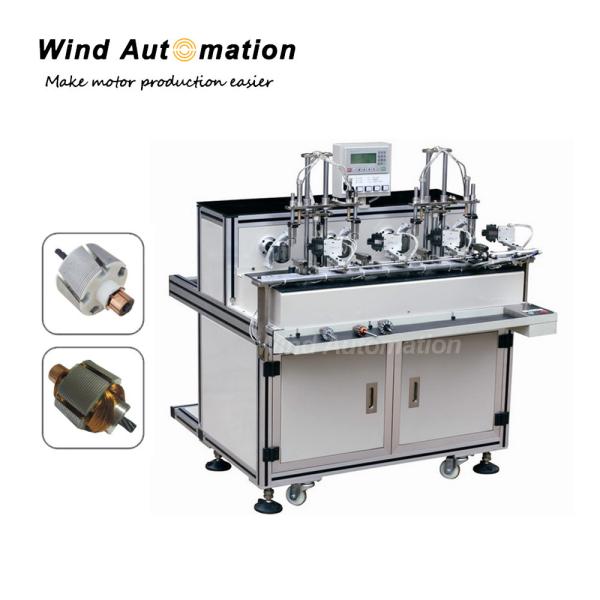

Machine is of high efficiency with 4 working stations, which means 4 armature can be winded at same time. Wire diameter range is 0.08~0.55mm (AWG23 ~ AWG40). Automatic clamping, automatic winding, automatic indexing,automatic hooking.

(1) Specification
Wire diameter 0.08~0.55mm

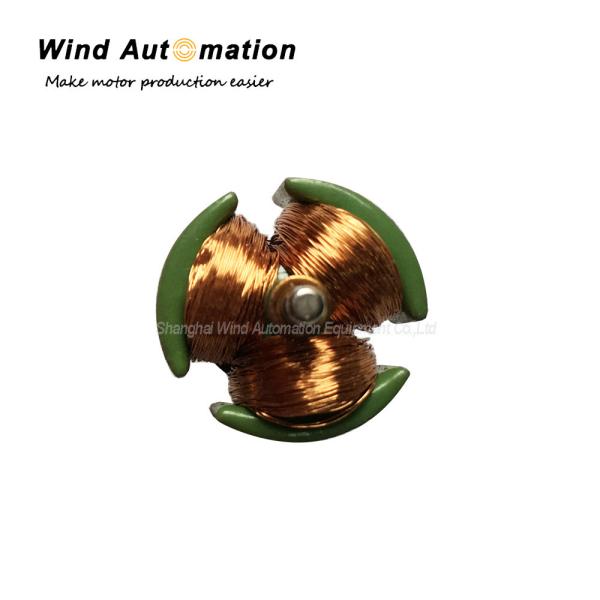

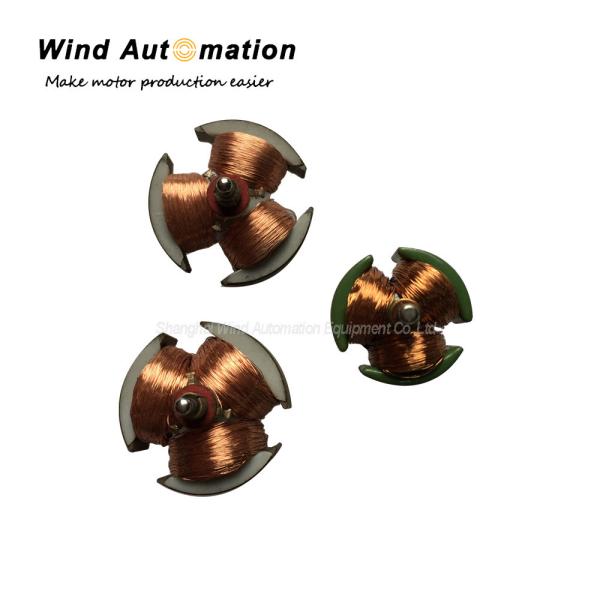

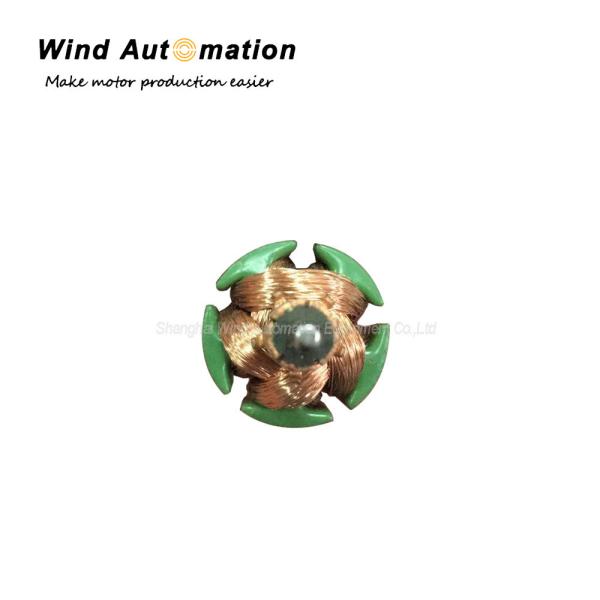

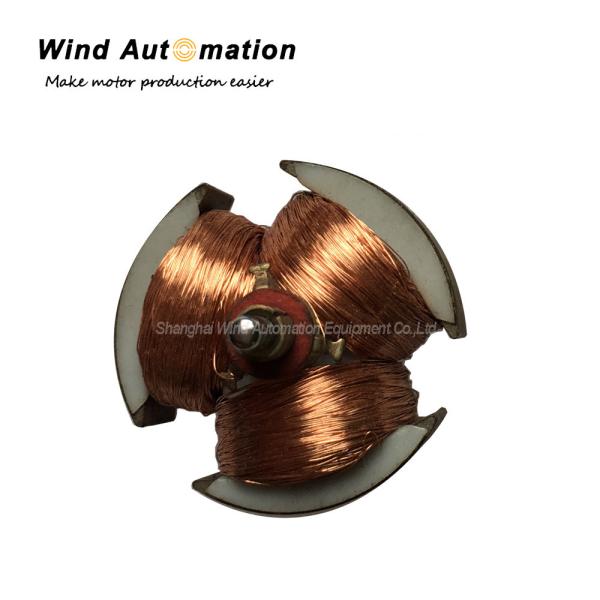

Armature type 3~5 slots armature
Armature diameter 8~25mm
Max armature stack length 30mm
Winding motor speed 0~3000 rpm
Maxshaft length 70mm
Rated power ≤1.2kW
Air supply pressure 0.4M~0.8MPa
Voltage AC220V 50/60Hz
Machine dimension 1100*1100*1300mm
Machine weight 320Kg


(2) Application
Micro Motor with 3 slots, 5 slots, even slots covering power tool, toy,windshield washer pump, door lock actuator,automotive parts


100 Sets/Year WIND-ODD-4 Armature Winding Machine for 3 or 5 Slots Micro Motor Rotor100 Sets/Year WIND-ODD-4 Armature Winding Machine for 3 or 5 Slots Micro Motor Rotor
100 Sets/Year WIND-ODD-4 Armature Winding Machine for 3 or 5 Slots Micro Motor Rotor
