Specifications
Model NO. :
WIND-ODD-4
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
4 Working Stations Micro Motor Armature Winding Machine
4 Working Stations Micro Motor Armature Winding Machine

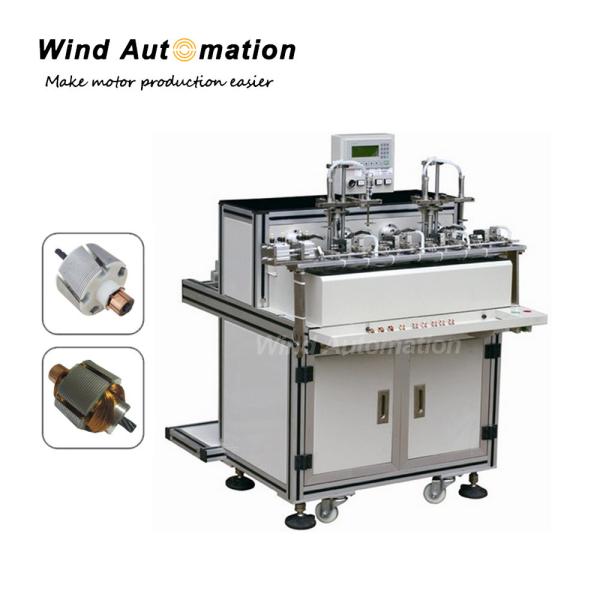

This machine has 4 working stations, suitable for small armature with 3 to 5 slot to do coil winding. Machine can do automatic clamping, automatic winding, automatic indexing,automatic hooking.

(1) Specification
Wire diameter 0.08~0.55mm
Armature type 3~5 slots armature
Armature diameter 8~25mm
Max armature stack length 30mm
Winding motor speed 0~3000 rpm
Maxshaft length 70mm
Rated power ≤1.2kW
Air supply pressure 0.4M~0.8MPa
Voltage AC220V 50/60Hz
Machine dimension 1100*1100*1300mm
Machine weight 320Kg


(2) Application

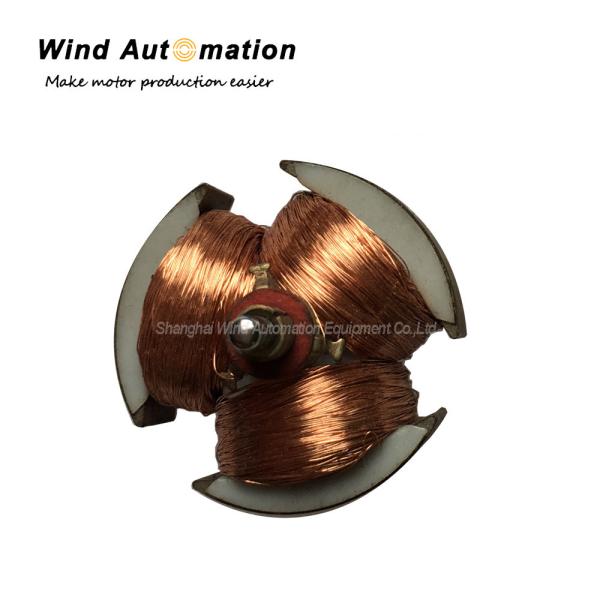

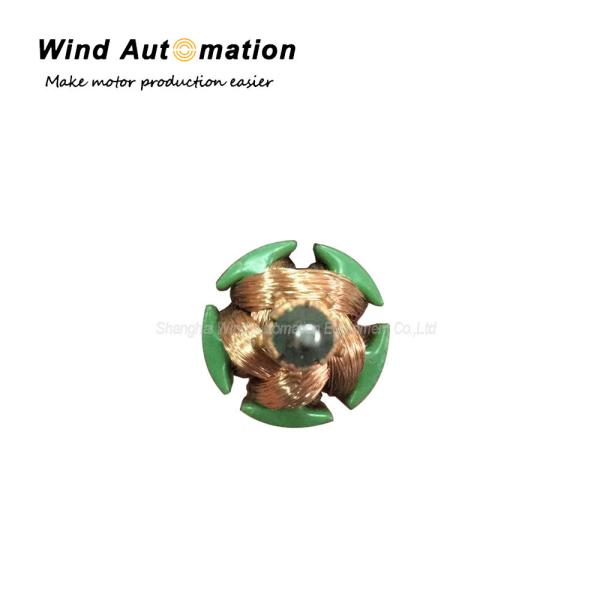

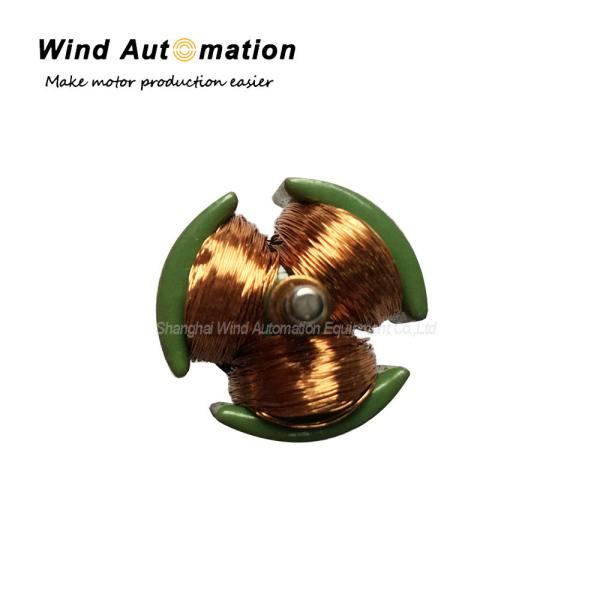

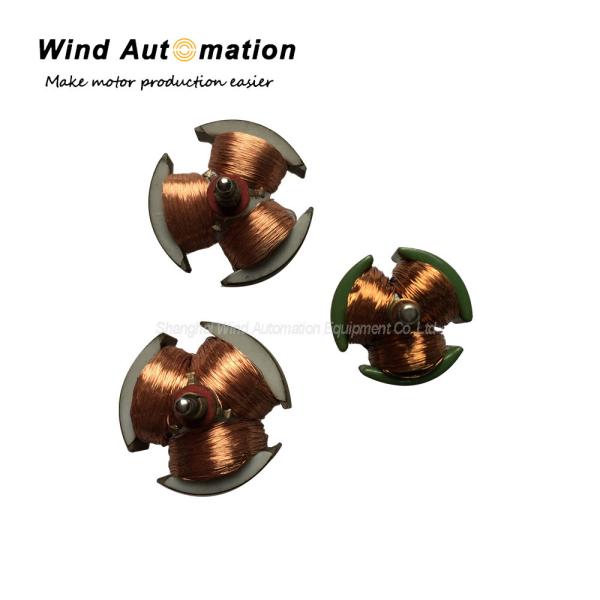

Micro Motor with 3 slots, 5 slots, even slots covering power tool, toy,windshield washer pump, door lock actuator,automotive parts


4 Working Stations Micro Motor Armature Winding Machine4 Working Stations Micro Motor Armature Winding Machine
4 Working Stations Micro Motor Armature Winding Machine
