Specifications
Model NO. :
WIND-SAW
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Semi-automatic Armature Winding Machine
Middle Size WIND-SAW Semi-Automatic Armature Coil Winding Machine for Industrial Needs

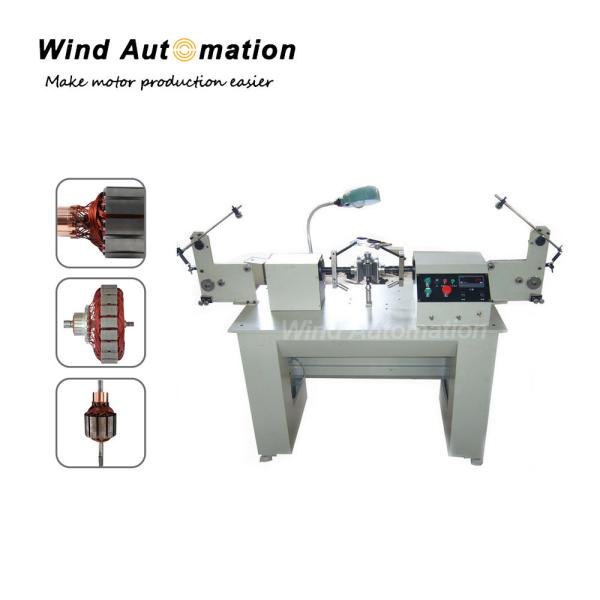

This is an economic type machine for armature winding. It can wind even slot armatures. Machine can do automatic clamping, automatic winding, automatic indexing. Hooking should be done manuall.

(1) Specification
Wire Diameter 0.08-1.08mm
Flyer Speed 0-1400r/min
Flyer No. 2
Turn No. 0-9999
Power 0.8KW
Power supply 220V±10%, 50HZ

(2) Application

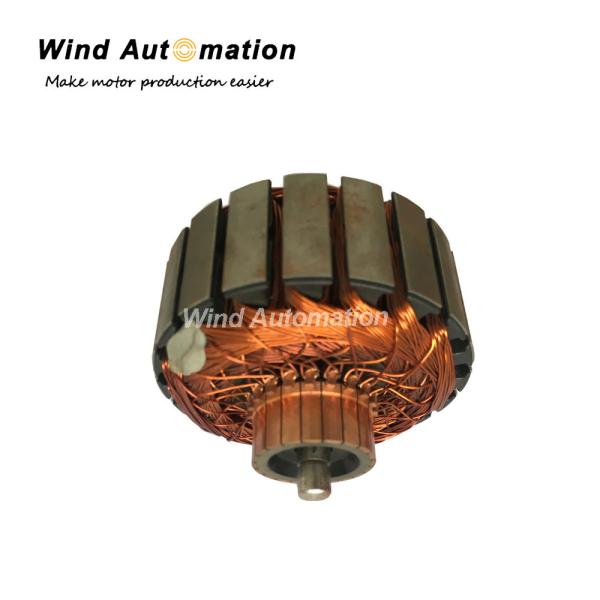

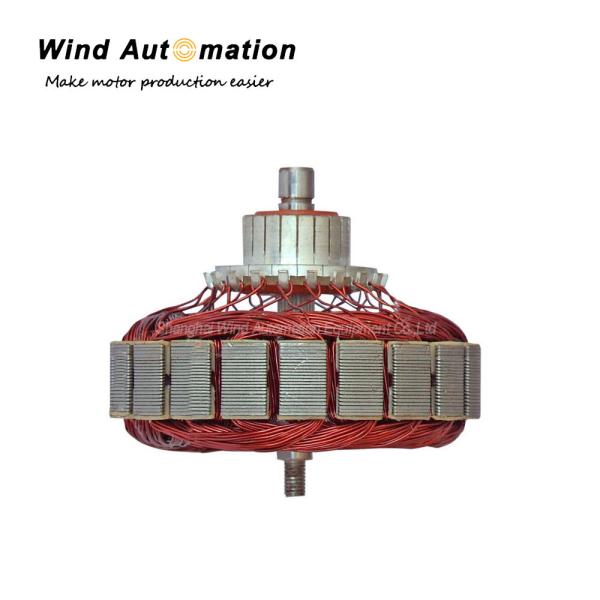

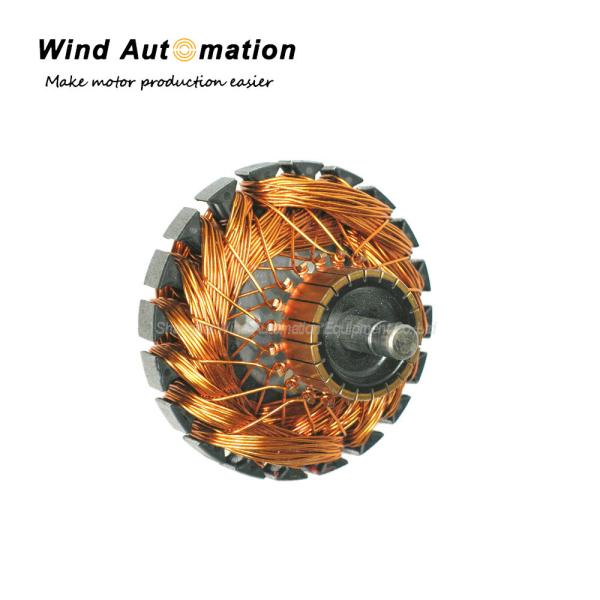

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(3) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
