Specifications
Model NO. :
WIND-SAW
Automatic :
Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Economic Type Machine for Armature Coil Winding Machine
Economic Type Machine for Armature Coil Winding Machine

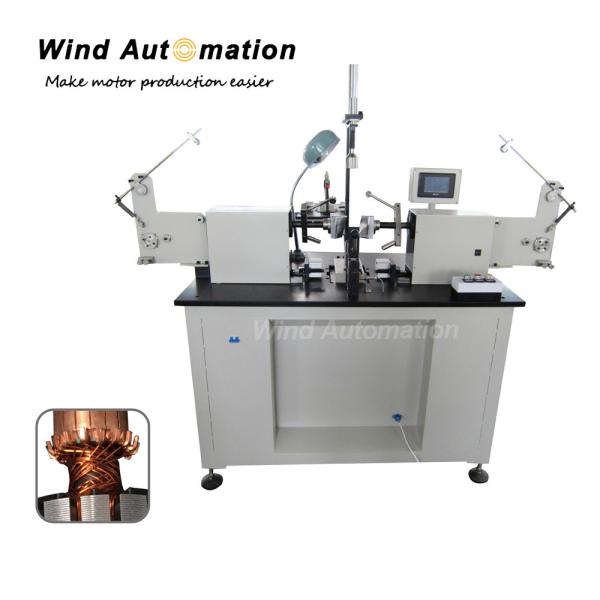

This machine is used to do armature coil winding. Hooking should be done manuall. Clamping, winding, indexing will be done by machine automatically.

(1) Application

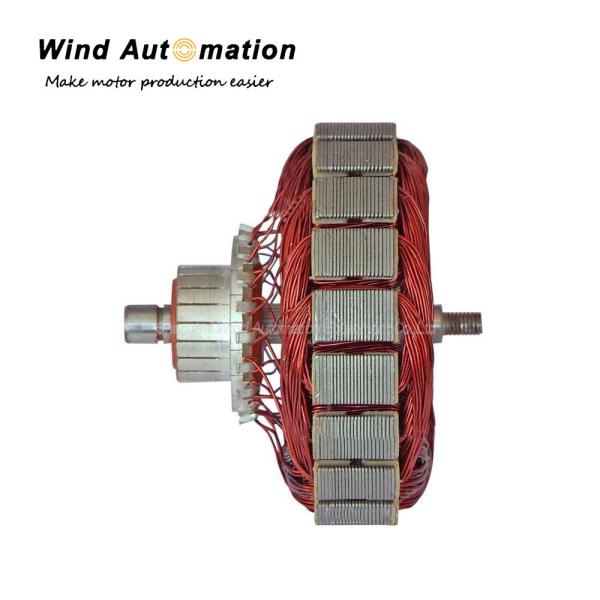

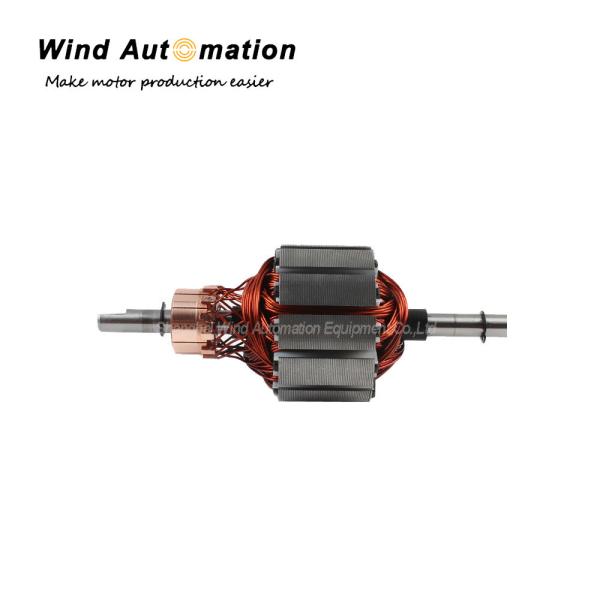

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(2) Specification
Wire Diameter 0.08-1.08mm
Flyer Speed 0-1400r/min
Flyer No. 2
Turn No. 0-9999
Power 0.8KW
Power supply 220V±10%, 50HZ

(3) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
