Specifications
Model NO. :
WIND-STR
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Armature Flyer Winding Machine Lap Winder
Hook Type Winding Machine
Armature Flyer Winding Machine Lap Winder Hook Type Winding Machine

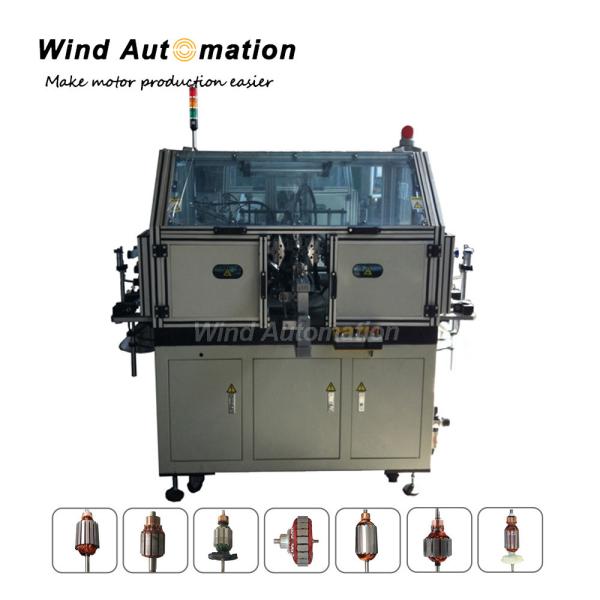

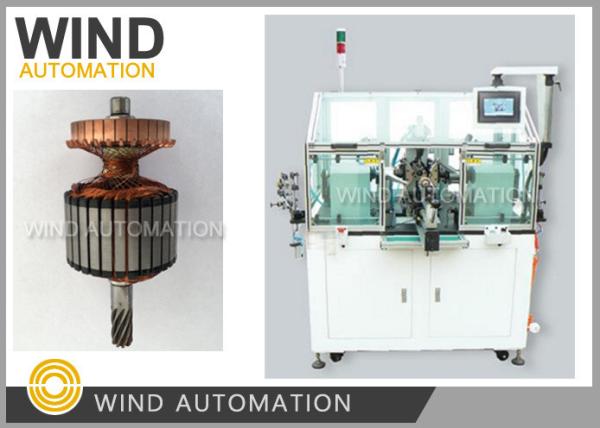

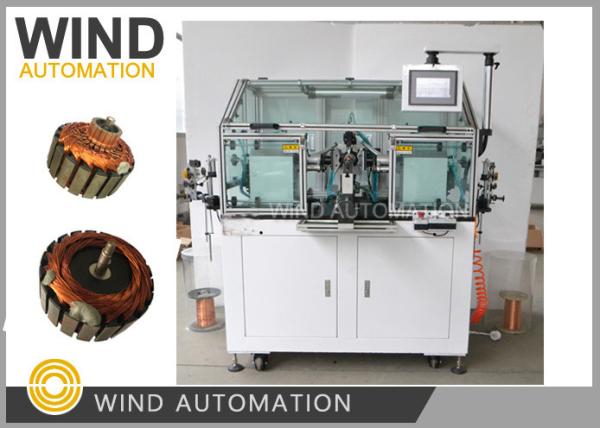

This armature winding machine adopts double flyers structure, 2pcs Mitsubishi servo motor drive the two flyers rotation, and 1pc Mitubishi indexing servo motor make sure the precise indexing.


(1) Specification
Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm
HS code: 8479811000

(2) Application

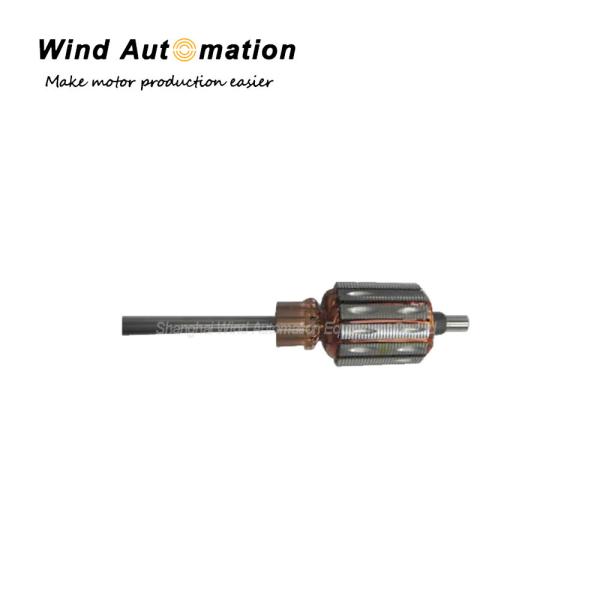

Wind the wire of armature for micro motor such as series motor, house hold appliances motor power tools,mixer,blender,car motor etc.

Armature Flyer Winding Machine Lap Winder Hook Type Winding Machine

Armature Flyer Winding Machine Lap Winder Hook Type Winding MachineArmature Flyer Winding Machine Lap Winder Hook Type Winding Machine
Armature Flyer Winding Machine Lap Winder Hook Type Winding Machine
