IEC Standard Toughened Glass Insulators CTV 175 Tempered Glass Disc Insulators
IEC Standard Toughened Glass Insulators CTV 175 Tempered Glass Disc Insulators
Specifications
Brand Name :
MacweyTEK
Model Number :
CTV 175
Certification :
IEC
Place of Origin :
China
MOQ :
10
Price :
$5
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
Toughened Glass Insulators
Nominal diameter :
175 mm
Height :
110 mm
Creepage distance :
185 mm
Coupling size :
11A (11 mm)
Minimum mechanical damage load :
40 kN
Description

Insulators Manufacturer IEC Standard CVT175 Tempered Glass Disc Insulator for High Voltage Suspension Insulator String


CTV 175 tempered glass insulator is widely used in 10 kV to 66 kV power transmission lines. It features a nominal diameter of 175 mm, height of 110 mm, creepage distance of 185 mm, coupling size of 11A (11 mm), and a minimum mechanical damage load of 40 kN. The insulator weighs approximately 1.7 kg.

In some markets, the CTV 175 tempered glass insulator is also known as the U40B glass insulator. Its primary market is Africa, particularly Algeria.

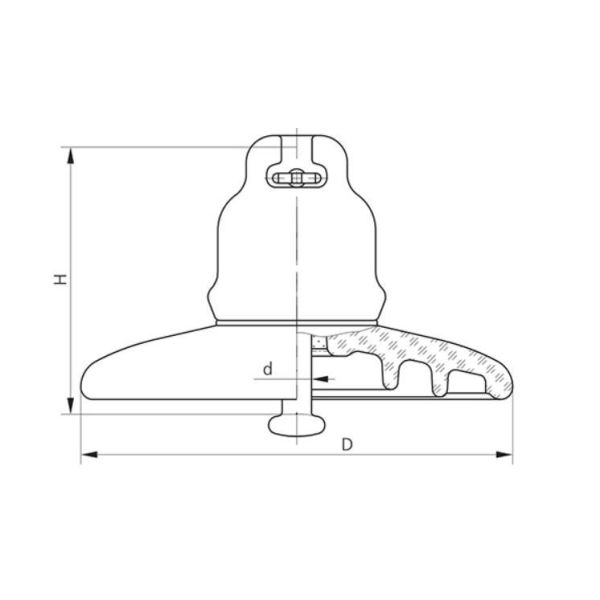

CTV 175 Glass Insulator Technical Specifications

IEC Standard Toughened Glass Insulators CTV 175 Tempered Glass Disc Insulators

Désignation Caractéristiques mécaniques et dimensionnelles
Type CTV175 CTV255 CTV255
Référence normative U40B U40BP U70BS
Verre Verre trempé Verre trempé Verre trempé
Capot Fonte malléable Fonte malléable Fonte malléable
Tige Acier forgé Acier forgé Acier forgé
Goupille Acier inoxydable Acier inoxydable Acier inoxydable
Charge de rupture 4000 daN 4000 daN 7000 daN
Charge de travail 3200 daN 3200 daN 5600 daN
Diamètre de l’isolateur 175 mm 255 mm 255 mm
Pas de l’isolateur 110 mm 110 mm 127 mm
Norme couplage Norme 11 Norme 11 Norme 16
Ligne de fuite 185 mm 302 mm 302 mm
Poids approximatif 1.7 kg 3.2 kg 3.4 kg
