70 kN - 100 kN High Voltage Insulator High Strength Suspension Polymer Insulator
70 kN - 100 kN High Voltage Insulator High Strength Suspension Polymer Insulator
Specifications
Brand Name :
MacweyTEK
Model Number :
FBX/FBXW
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$8.5
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
10 days
Packaging Details :
wooden case
Name :
High Voltage Insulator
Mechanical Load :
70kN-100kN
Structure & Material :
Hydrophobic Silicone Rubber Sheds + FRP Core Rod + Hot-Dip Galvanized End Fittings
Core Feature :
Pollution/Corrosion Resistant, Lightweight, Extended Creepage Distance
Performance :
Excellent Mechanical & Electrical Properties
Application :
Overhead High-Tension Power Lines
Description

Reliable 11kv, 24kv, 35kV, 66kV, 110KV Polymer Silicone Rubber Insulator for Overhead Lines

Polymer suspension insulators are high-tension insulators with a capacity of over 70 kN. They consist of three main parts: hydrophobic silicone rubber sheds, a high-strength epoxy resin glass fiber core rod, and hot-dip galvanized end fittings. They are also known as silicone rubber insulators.

Featuring light weight, a long creepage distance, corrosion resistance, and excellent mechanical and electrical properties, polymer suspension insulators are highly suitable for heavy pollution areas.

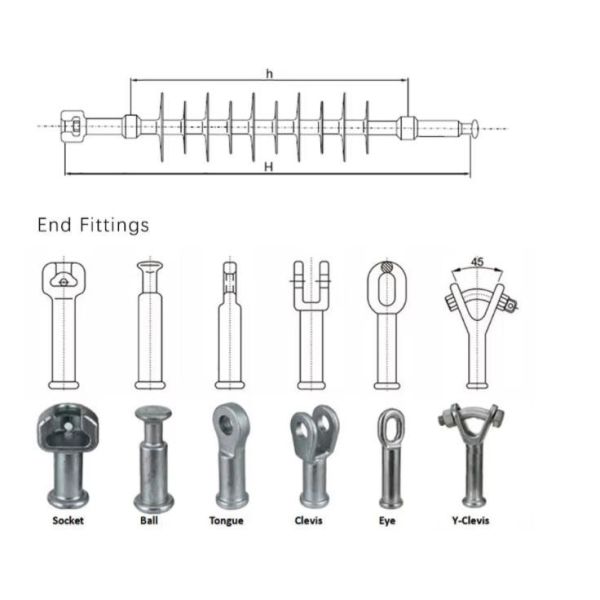

70 kN - 100 kN High Voltage Insulator High Strength Suspension Polymer Insulator


Polymer Suspension Insulator Technical Specifications

Model Rated Voltage (kV) Rated Mechanical Bending Load (kN) Structure Height (mm) Minimum Arc Distance (mm) Minimum Creepage Distance (mm) Lightning Impulse Withstand Voltage,peak (kV) Power Frequency 1 min Wet Withstand Voltage (kV) Coupling Size
FXB-11/70 11 70 330 160 300 95 45 16
FXB-11/80 11 80 370 200 450 95 45 16
FXB-24/70 24 70 410 240 750 125 65 16
FXB-24/100 24 100 450 240 750 125 65 16
FXB-24/120 24 120 450 240 750 125 65 16
FXB-33/70 33 70 530 360 900 200 95 16
FXB-33/80 33 80 590 425 1080 220 95 16
FXBW-33/70 33 70 655 480 1260 220 105 16
FXBW-33/100 33 100 695 480 1260 220 105 16
FXBW4-66/70 66 70 870/940 710 2248 410 185 16
FXBW4-66/100 66 100 870/940 710 2248 410 185 16
FXBW4-110/100 110 100 1240/1440 1000/1200 3150/3860 550 230 16
FXBW4-110/160 110 160 1340 1000 3380 550 230 R20
FXBW4-145/120 145 120 1480 1240 4123 725 355 16
FXBW4-220/100 220 100 2240/2350/2470 2020/2080/2210 6450/6760/7150 1000 395 16
FXBW4-330/160 330 160 2290 2600 9075 1425 570 R20
FXBW4-220/210(160) 220 210/160 2350 2000 6800 1000 230 R20
FXBW4-330/210(160) 330 210/160 2930 2650 8790 1425 570 R20
FXBW4-500/210(160) 500 210/160 4450 4075 14860 2050 740 R20
