10kN High Voltage Insulator 110kV 220kV HV Insulator With Glass Fiber Reinforced Resin Core
10kN High Voltage Insulator 110kV 220kV HV Insulator With Glass Fiber Reinforced Resin Core
Specifications
Brand Name :
MacweyTEK
Model Number :
FZSW
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$9
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
High Voltage Insulator
Rated Voltage :
11/24/33/66/110/220kV
Structure & Material :
Silicone Rubber + FRP Core + Galvanized Steel/Aluminum Alloy End Fittings
Rated Mechanical Load :
10kN Bending Load
Application :
Substations & High-Voltage Power Equipment (Conductor Support & Insulation)
Core Feature :
Pollution Flashover Resistant, Hydrophobic, Weather Durable, Lightweight
Description

110kv, 220kv High Voltage Station Insulator Composite Polymer Long Rod Post Insulators


Polymer Station Post Insulators are widely used in substations and high-voltage power equipment to support and secure conductors while ensuring excellent electrical insulation.

Structure of the Polymer Station Post Insulator:
• Insulation Component: Made of silicone rubber polymer, offering outstanding resistance to pollution flashover and excellent hydrophobic properties.
• Core Rod: Typically composed of glass fiber-reinforced resin (FRP), providing high mechanical strength.
• End Fittings: Constructed from galvanized steel or aluminum alloy, ensuring secure attachment to power equipment.

Thanks to its lightweight design, superior pollution flashover resistance, and excellent weather durability, the Polymer Station Post Insulator is increasingly replacing traditional porcelain post insulators.

Polymer Station Post Insulator Technical Specifications (IEC 61952)

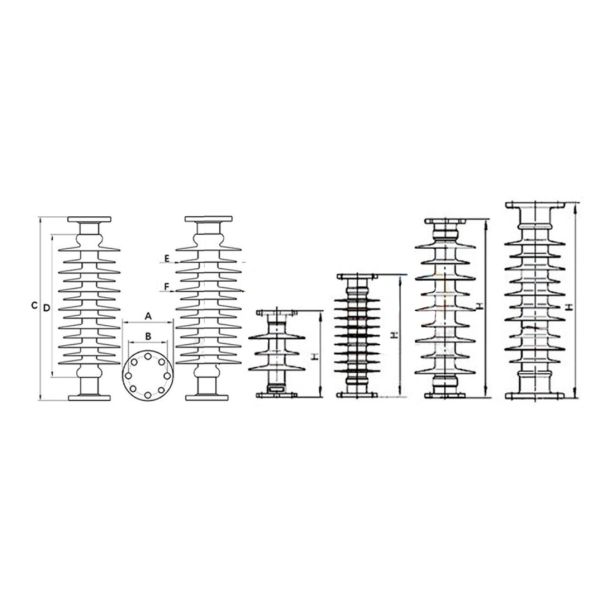

10kN High Voltage Insulator 110kV 220kV HV Insulator With Glass Fiber Reinforced Resin Core

Model Rated Voltage (kV) Rated Mechanical Bending Load (kN) Structure Height (mm) Minimum Arc Distance (mm) Minimum Creepage Distance (mm) Lightning Impulse Withstand Voltage,peak (kV) Power Frequency 1 min Wet Withstand Voltage (kV)
FZSW-11/10 11 10 255 175 600 145 45
FZSW-24/10 24 10 300 210 630 145 65
FZSW-33/10 33 10 450 275 900 200 95
FZSW-33/10 33 10 400 285 1060 200 95
FZSW-66/10 66 10 760 630 1940 350 185
FZSW-110/10 110 10 1220 1060 3260 450 200
FZSW-220/10 220 10 2550 2050 6520 950 395
