160kN High Voltage Insulator 45kV Glass Suspension Insulators 400mm Leakage Distance
160kN High Voltage Insulator 45kV Glass Suspension Insulators 400mm Leakage Distance
160kN High Voltage Insulator 45kV Glass Suspension Insulators 400mm Leakage Distance
160kN High Voltage Insulator 45kV Glass Suspension Insulators 400mm Leakage Distance
Specifications
Brand Name :
MacweyTEK
Model Number :
U160BS
Certification :
IEC
Place of Origin :
China
MOQ :
10 pcs
Price :
$5
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
High Voltage Insulator
Model :
U160BS
Mechanical Strength :
160kN Minimum Breaking Load
Electrical Performance :
400mm Leakage Distance; 45kV Wet Withstand Voltage
Compliance Standards :
IEC 60305/60120/60383
Application :
10kV-500kV Transmission and Distribution Lines
Description

Corrosion Resistance High Voltage Insulation Toughened Glass Electrical Pin Insulators Disc Suspension Type Insulator


U160BS glass insulator is a high voltage insulator suitable for 10kV–500kV transmission and distribution lines. It complies with IEC 60305, IEC 60120, and IEC 60383 standards. This insulator offers excellent mechanical strength, with a minimum mechanical breaking load of 160kN—hence it is also known as a 160kN disc insulator.

Regarding electrical performance, the U160BS glass insulator has a power frequency wet withstand voltage of 45kV, a lightning impulse withstand voltage of 125kV, and a leakage distance of 400mm.

In Mexico, the U160BS glass insulator is known as Aislador 28SVC160C. The product has passed the type test report and meets the application requirements of the Mexican Electricity Authority.


U160BS Glass Insulator Technical Specifications

160kN High Voltage Insulator 45kV Glass Suspension Insulators 400mm Leakage Distance

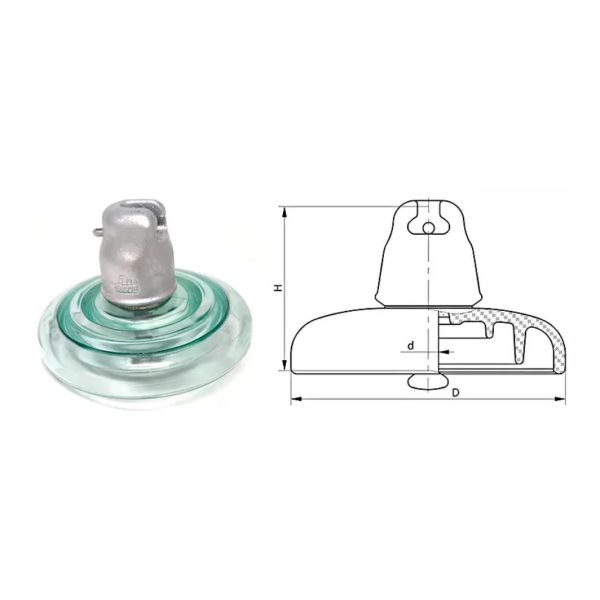

DIMENSIONS
According to IEC 60305
IEC designation: U160BS
Diameter of shell (D): 280 mm
Spacing (H): 146 mm
Nominal creepage distance: 400 mm
Ball and socket coupling (IEC 60120): 20 mm
Approximate net weight: 6.0 kg

MECHANICAL PERFORMANCE
According to IEC 60383
Minimum mechanical failing load: 160 kN
Routine Test Load: 80 kN

ELECTRICAL PERFORMANCE
According to IEC 60383
Puncture voltage in insulating medium: 130 kV
50 Hz withstand voltage (dry): 72 kV
50 Hz withstand voltage (wet): 45 kV
Dry lightning impulse withstand voltage: 125 kV

COMPONENT PARTS
Dielectric shell: Toughened glass
Cap: Hot dip alvanized cast iron
Pin: Hot dip galvanized forged steel
Cotter key: Stainless steel
Cement: Aluminous, hot cured
