U160BLP High Voltage Insulator 160kN Toughened Glass Insulator 550kV With 550mm Creepage Distance
U160BLP High Voltage Insulator 160kN Toughened Glass Insulator 550kV With 550mm Creepage Distance
U160BLP High Voltage Insulator 160kN Toughened Glass Insulator 550kV With 550mm Creepage Distance
U160BLP High Voltage Insulator 160kN Toughened Glass Insulator 550kV With 550mm Creepage Distance
Specifications
Brand Name :
MacweyTEK
Model Number :
U160BLP
Certification :
IEC
Place of Origin :
China
MOQ :
10 pcs
Price :
$6
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
High Voltage Insulator
Model :
U160BLP
Mechanical Breaking Load :
160kN
Rated Application Voltage :
Up to 550kV
Creepage Distance :
550mm
Compliance Standard :
IEC 60305/IEC 60383
Description

U160BLP Sediver Toughened Glass Suspension Insulator Toughened Glass Disc Insulator

for High Voltage Suspension Insulator String


U160BLP Sediver glass insulator is a toughened fog type glass insulator designed for high-voltage transmission lines up to 550kV, especially in heavy pollution areas. It offers a high mechanical breaking load of 160kN, ensuring excellent performance and reliability in harsh environmental conditions.

This U160BLP Sediver glass insulator complies with IEC standards. It features a nominal diameter of 320mm, height of 170mm, creepage distance of 550mm, and a coupling size of 20mm. The net weight is approximately 9.1kg.

U160BLP Sediver Glass Insulator Technical Specifications

U160BLP High Voltage Insulator 160kN Toughened Glass Insulator 550kV With 550mm Creepage Distance

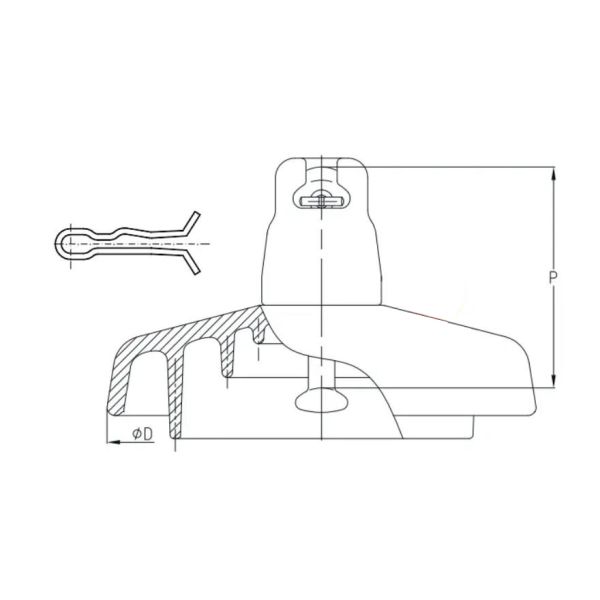

DIMENSIONS
According to IEC 60305
IEC designation: U160BLP
Diameter of shell (D): 320 mm
Spacing (P): 170 mm
Min. nominal creepage distance: 550 mm
Couplings according to IEC 60120: 20
Approximate net weight: 9.1 kg

MECHANICAL PERFORMANCE
According to IEC 60383
Min mechanical failing load: 160 kN
Routine Test Load: 80 kN

ELECTRICAL PERFORMANCE
According to IEC 60383
Power frequency withstand voltage
dry one minute: 90 kV
wet one minute: 55 kV
Lightning impulse withstand voltage: 140 kV
Withstand puncture voltage: 130 kV

COMPONENT PARTS
Dielectric shell: Toughened glass
Cap: Hot dip galvanized cast iron
Pin: Hot dip galvanized forged steel
Cotter key: Stainless steel
Cement: Aluminous, hot cured
