CTV 254 Disk Type Insulator 11KV 33KV Porcelain Suspension Insulator With 254mm Diameter
CTV 254 Disk Type Insulator 11KV 33KV Porcelain Suspension Insulator With 254mm Diameter
Specifications
Brand Name :
MacweyTEK
Model Number :
CTV175
Certification :
IEC
Place of Origin :
China
MOQ :
10 pieces
Price :
$6
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
15 days
Packaging Details :
wooden case
Name :
Disk Type Insulator
Rated Voltage :
11kV/33kV
Mechanical Failing Load :
70kN
Diameter :
254mm
Creepage Distance :
320mm
Type & Application :
Porcelain Disk Suspension Insulator, High Voltage Power Transmission
Description

11KV Porcelain Disk Suspension Insulator High Voltage Glass Insulator Rated at 33KV


CTV 254 insulator is used in high-voltage power transmission systems ranging from 10 kV to 330 kV. It has a diameter of 254 mm, a creepage distance of 320 mm, and can withstand a minimum mechanical failing load of 70 kN.

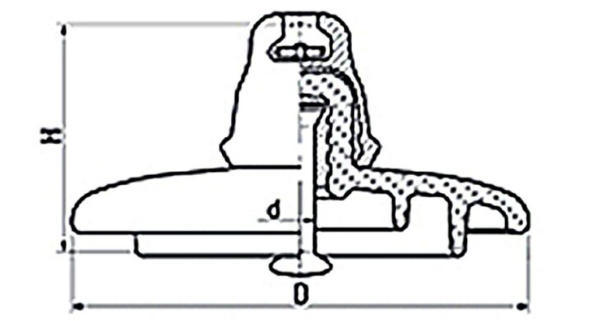

CTV 254 Disk Type Insulator 11KV 33KV Porcelain Suspension Insulator With 254mm Diameter

Item - CTV 175 CTV 254
IEC Designation - U40B/110 U70B/146 U70B/127
Nominal Diameter D mm 178 255 255
Nominal Height H mm 110 146 127
Nominal Creepage Distance L mm 185 320 320
Socket Coupling mm 11 16 16
Mechanical Failing Load kN 40 70 70
Mechanical Routine Test kN 20 35 35
Wet Power Frequency Withstand Voltage kV 25 40 40
Dry Lightning Impulse Withstand Voltage kV 70 100 100
Impulse Puncture Voltage P.U 2.8 2.8 2.8
Power Frequency Puncture Voltage kV 90 130 130
Radio Influence Voltage μv 50 50 50
Corona Visual Test kV 18/22 18/22 18/22
Power Frequency Electric Arc Voltage kA 0.12s/20kA 0.12s/20kA 0.12s/20kA
Net Weight Per Unit kg 1.7 3.6 3.5
