120kN High Voltage Insulator U120B Glass Disc Insulator For High Voltage Transmission
120kN High Voltage Insulator U120B Glass Disc Insulator For High Voltage Transmission
Specifications
Brand Name :
MacweyTEK
Model Number :
U120BP
Certification :
IEC
Place of Origin :
China
MOQ :
10
Price :
pieces
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
15 days
Packaging Details :
wooden case
Name :
High Voltage Insulator
Mechanical Breaking Load :
120kN
Spacing :
127mm
Creepage Distance :
320mm
Configuration & Application :
Standard/Anti-pollution/Aerodynamic Profile, High Voltage Transmission Lines up to 330kV
Model :
U120B
Description

120kn Glass Disc Insulator U70 For High Voltage Transmission And Distribution Line

U120B glass insulator is a type of disc insulator with a minimum mechanical breaking load of 120kN. Multiple U120B glass insulators can be connected in series to form a suspension insulator string, making them suitable for high-voltage transmission lines up to 330kV.

Depending on the installation environment, U120B glass insulators are available in three types: standard profile, anti-pollution profile, and aerodynamic profile, each designed to meet specific performance requirements under different conditions.

U120B Glass Insulator Technical Specifications

120kN High Voltage Insulator U120B Glass Disc Insulator For High Voltage Transmission

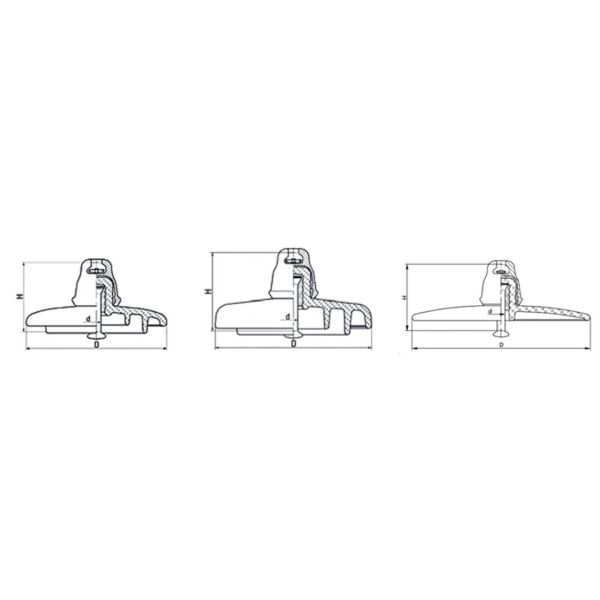

Standard Profile Anti-pollution Profile Aerodynamic Profile

Glass insulator types IEC class Minimum mechanical failing load (kN) Nominal diameter D(mm) Nominal spacing H(mm) Nominal creepage distance(mm) Standard coupling/PIN One by one tensile load test (kN) Wet power frequency withstand voltage (kV) Dry lightning impulse withstand voltage (kV) Net weight (kg)
Standard profile U120B U120B/127 120 255 127 320 16 60 40 100 3.9
U120B U120B/146 120 255 146 320 16 60 40 100 4.2
Anti-pollution profile U120BP/146 120 255 146 400 16 60 45 110 5.3
U120BLP U120BP/146 120 280 146 450 16 60 50 125 6.0
U120BP/146 120 320 146 550 16 60 55 140 8.3
Aerodynamic profile U120BP/127M 120 380 127 365 16 60 45 90 6.3
U120BP/146M 120 380 146 365 16 60 45 90 6.3
