Specifications
Model Number :
Mbf22-10
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
330*200*330mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1300*1900*1160mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Industrial Range Mbf22-10 Atmosphere Box Furnace Nitrogen Muffle Furnace 1000 ordm C for High Temperature Applications
1. Applications:
Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.


Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM
2. Mainly Specifics:
  1. Rated Temp:850ºC
  2. Max Temp: 1000ºC

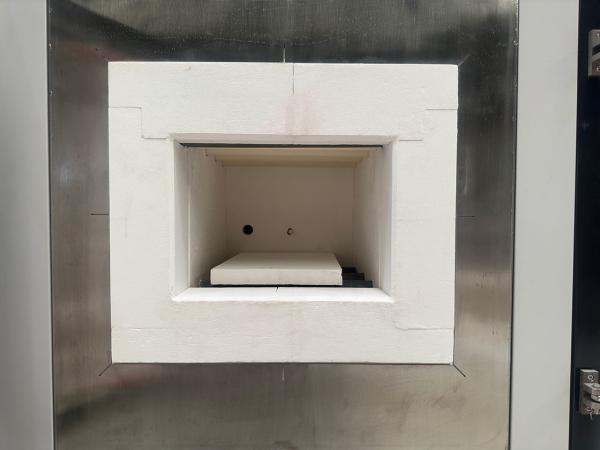

  3. Effective Dimensions: 330 × 200 × 330mm(W×H×D)
  4. Heating Method: ceramic tube-encased silicon carbide rod.
  5. Process Atmosphere: Nitrogen
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±3ºC .
  8. Thermocouple: Type N
  9. Temperature control points: 1 points
  10. Temperature measurement points: 1 point
  11. Process Steps: 4×16 steps
  12. Oxygen Content: ≤ 20ppm+gas supply oxygen content
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  14. Max Heating Power: 12kW
  15. Surface Temperature Rise: ≤ 40ºC
  16. Weight: about 650kg

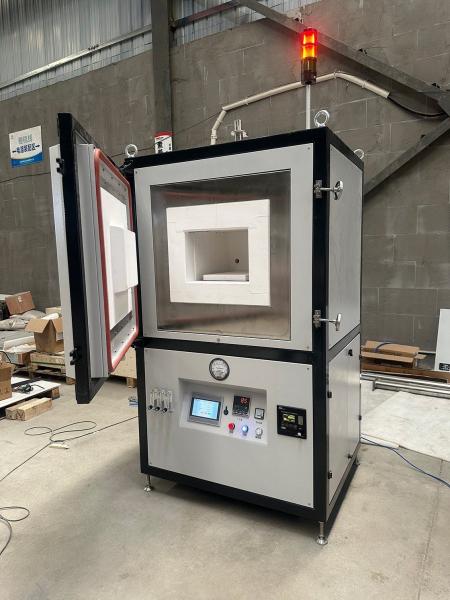

  17. Furnace Dimensions: about 1300*1900*1160mm (W×H×D);
  18. Appearance Color: light gray
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts ceramic tube-encased silicon carbide rod SiC silicon carbide rod 1 Set

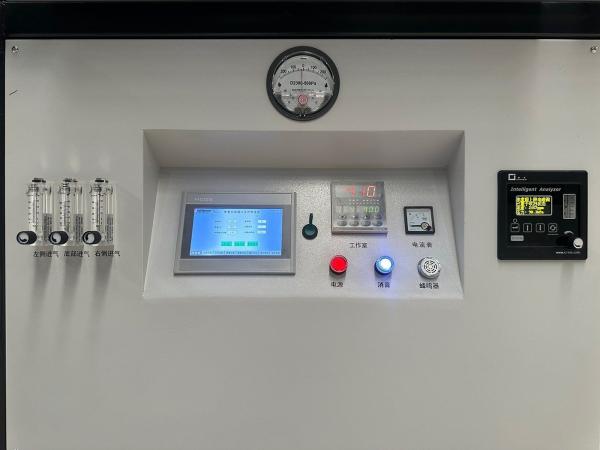

Touch Screen 1 PC
Temperature Controller Azbil 1 Set
micro-oxygen analyzer 1 Set
Spares silicon carbide rod 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 2 - 5m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m3 /h;
4.5 Power conditions: capacity greater than 16kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m2.
