Specifications
Model NO. :
HBF16-17
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
200*200*400mm(W*H*D)
Rated Temperature :
1650ºC
Maximum Temperature :
1700ºC
Transport Package :
Wooden Packaging
Specification :
1000*1850*1100mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Electric Holding Furnace for Temperature Sintering Process Hbf16-17 Temperature Box Furnace at Maximum Temperature of 1600°CElectric Holding Furnace for Temperature Sintering Process Hbf16-17 Temperature Box Furnace at Maximum Temperature of 1600°CElectric Holding Furnace for Temperature Sintering Process Hbf16-17 Temperature Box Furnace at Maximum Temperature of 1600°C1. Equipment Name and Model:

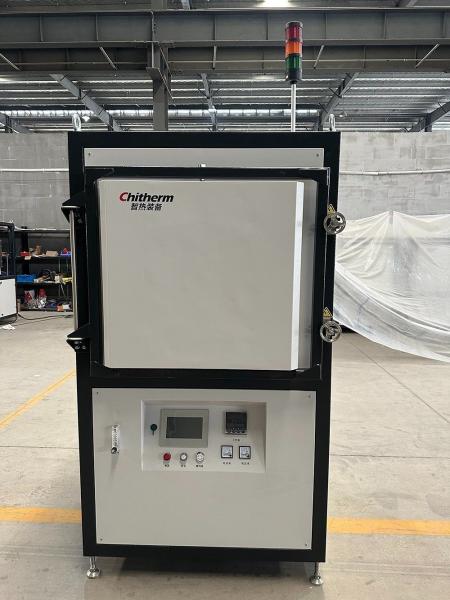

HBF16-17 High-temperature Box Furnace

2. Application Fields:
It is widely used in the high-temperature sintering process of products similar to microwave ferrites, magnetic materials, electronic devices, ceramic products, ceramic filters, etc.

3. Technical Specifications and Basic Configuration
3.1 Rated Temperature: 1650ºC;
3.2 Maximum Temperature: 1700ºC (It can be used for a long time at this temperature);
3.3 Effective Size: 200×200×400mm (Width×Height×Depth);
3.4 Heating Element: U-shaped silicon-molybdenum rod;
3.5 Temperature Control Stability: ±1ºC on the high-temperature platform, with the function of PID parameter self-tuning;
3.6 Temperature Uniformity: ±5ºC (Insulation for 2 hours at 1600ºC, tested in an empty furnace);
3.7 Temperature Control Thermocouple: B scale;
3.8 Number of Temperature Control Points: 1 point;
3.9 Number of Temperature Control Segments: 4×16 segments;
3.10 Sintering Atmosphere: Air;

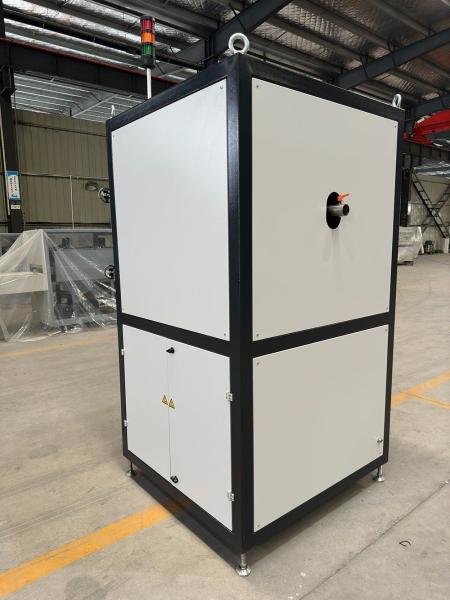

3.11 Exhaust Chimney: Located at the rear of the furnace chamber, and the exhaust volume can be manually adjusted;
3.12 Maximum Heating-up Power: 12kW;
3.13 Insulation Power of the Empty Furnace: ≤6kW;
3.14 Heating-up Rate: ≤5ºC/min;
3.15 Alarm and Protection: Acoustic and optical alarm protection for over-temperature, broken thermocouple, etc., and it has the function of power-off protection for over-temperature alarm;
3.16 Surface Temperature Rise: ≤35ºC;
3.17 Equipment Weight: Approximately 800Kg;
3.18 Overall Dimensions: 1000×1850×1100mm (Width×Height×Depth);
3.19 External Color of the Equipment: Light gray.
Electric Holding Furnace for Temperature Sintering Process Hbf16-17 Temperature Box Furnace at Maximum Temperature of 1600°C
4. General Technical Description

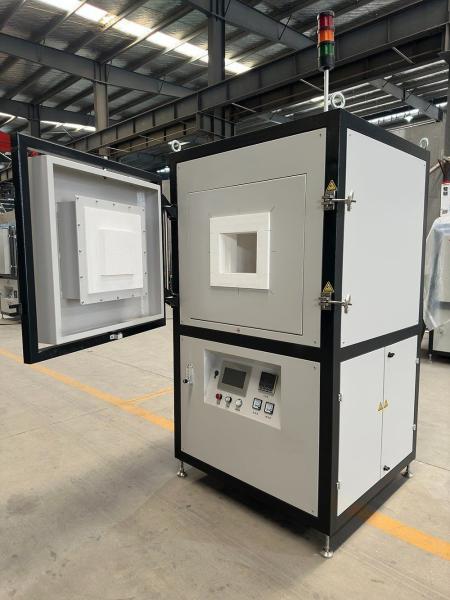

The equipment is mainly composed of the furnace frame assembly, furnace chamber assembly, and temperature control system.
4.1 Furnace Body Design
The external frame of the equipment is assembled and welded by profiles, and the external hanging plate is bent and welded by high-quality sheet metal, and the surface is treated with high-temperature plastic spraying.
4.2 Furnace Chamber Design

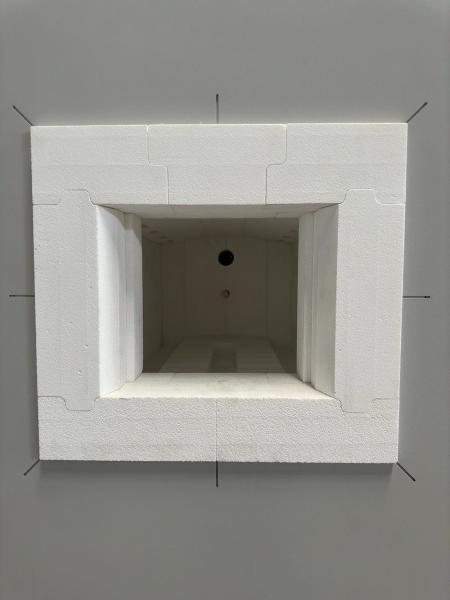

The inside of the furnace chamber is built with high-temperature resistant alumina products, which has the characteristics of small heat capacity, good heat preservation performance, fast heating-up speed, energy conservation, time saving, and good temperature field uniformity. The heating element is a silicon-molybdenum rod, which is installed vertically and arranged on the left and right sides of the furnace chamber to ensure the temperature uniformity in the furnace chamber.
4.3 Air Intake Design
During use, air can be introduced into the furnace chamber, and the air intake flow is controlled by a glass rotor flowmeter, with a measuring range of 10 to 100LPM.
4.4 Temperature Control System
4.4.1 Temperature Measurement: The control points are measured by a B-scale thermocouple;
4.4.2 Control Instrument: It is controlled by a Japanese Shima Denki intelligent regulator, which has multiple alarm and protection functions such as PID parameter self-tuning, high-temperature upper limit alarm, and thermocouple failure indication;
4.4.3 Control Mode: Power adjustment and voltage regulation control;
4.4.4 Over-temperature Treatment: When the over-temperature phenomenon occurs, the temperature over-temperature alarm system will immediately send out acoustic and optical alarm signals and cut off the heating at the same time, and the buzzer will emit a continuous alarm sound.

5. Equipment Handover List
Delivery List
Item Note QTY
Basic Compositions Kiln Main Machine 1 PC
Inspection Certificate of Conformity Certificates of Conformity for Each Main Outsourced Component 1 Set
Technical Documents Instruction Manual, Random Technical Documents of Each Main Outsourced Part, etc. 1 Set
Key Parts Silicon-molybdenum Rod 1 Set
Temperature Controller Shima Denki FP93 1 PC
Spares Silicon-molybdenum Rod 1 PC
Support Plate for Firing 1 Set
