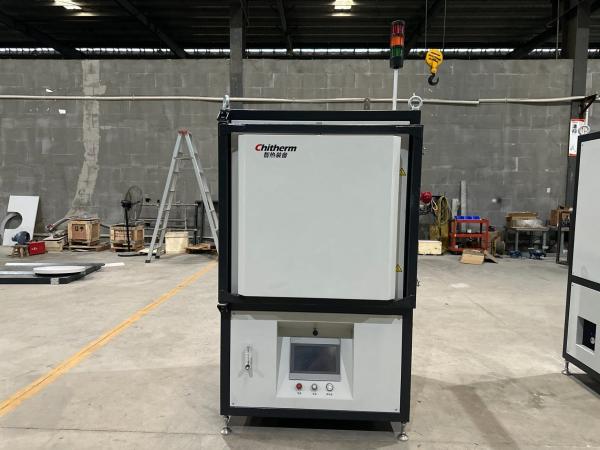

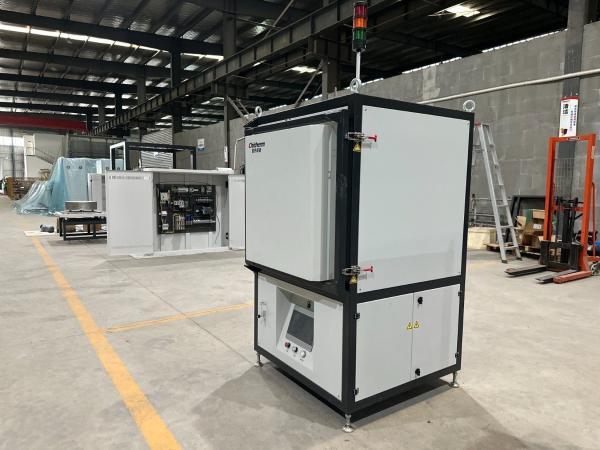

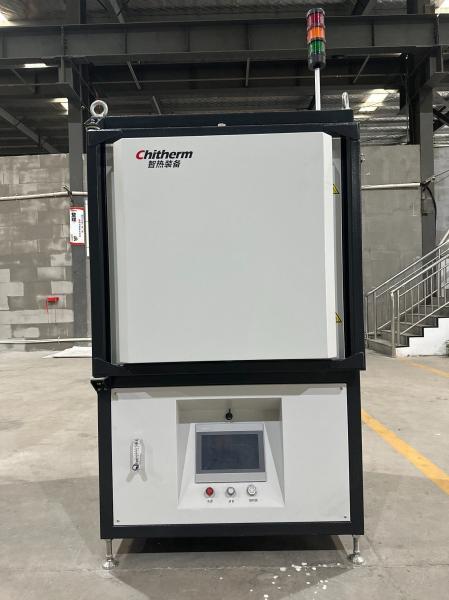

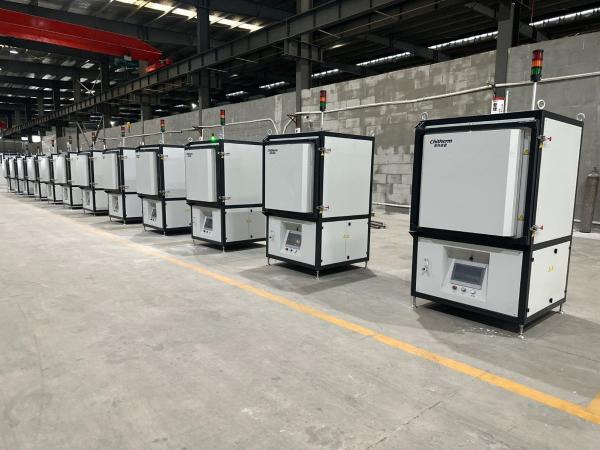

Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Specifications
Model Number :
MNF100-10
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air/O2
Effective Chamber Dimensions :
450*450*500mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
990*1680*1095mm
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

Electric Holding Furnace 1000 ordm C Mnf100-10 Cleanliness Box Melting Industrial Furnace for Electric Industrial Processes

Equipment Name and Model:
MBF100-10 Type Medium-Temperature Clean Box Furnace
Application Fields:
Mainly used for high-temperature heat treatment processes of similar products such as electronic devices and electronic ceramics.

Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting
Industrial Rapid Thermal Annealing RTA Furnace 1000 Ordm C Electric Holding Melting

Technical Specifications and Basic Configuration
3.1 Rated Temperature: 900°C;
3.2 Maximum Temperature: 1000°C;
3.3 Inner Lining Material: Fused Quartz;
3.4 Effective Dimensions: 450 × 450 × 500mm (W × H × D);
3.5 Heating Rate: ≤10°C/min;
3.6 Heating Elements: FEC ceramic fiber heating plates, heating from all four sides;
3.7 Temperature Stability: ±1°C, with PID parameter self-tuning function;
3.8 Temperature Uniformity: ±5°C (tested with an empty furnace at constant temperature of 900°C);
3.9 Thermocouple Type: K-type;
3.10 Number of Temperature Control Points: 1 point;
3.11 Number of Temperature Control Segments: 9 segments;
3.12 Exhaust Chimney: Equipped with an exhaust port at the rear, which can be manually adjusted;
3.13 Inlet Design: Allows the introduction of dry, clean, oil-free compressed air or oxygen into the furnace chamber, with the inlet flow controlled by a glass rotameter, measuring range 10-100LPM;
3.14 Alarm Protection: Over-temperature, open circuit, etc., with audible and visual alarm protection, and over-temperature alarm power-off protection function;
3.15 Maximum Heating Power: 16 kW;
3.16 Typical Insulation Power for an Empty Furnace: ≤8 kW;
3.17 Surface Temperature Rise: <35°C;
3.18 Equipment Weight: Approximately 450 Kg;
3.19 Equipment Exterior Color: Light Grey;
3.20 Reference External Dimensions: 990 × 1680 × 1095mm (W × H × D).
Delivery List
ItemNoteQTY
Basic CompositionsFurnace 1 unit
Certificates of InspectionFurnace and major purchased components1 Set
Technical DocumentsFurnace specifications, technical documents of major purchased components, etc1 Set
Key PartsTouch screen 1 PC
Temperature Controller 1 Set
FEC Heater 1 Set
Quartz Liner 1 Set
SparesSSR 1 PC

Facility Requirements

4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m2 .
4.3 Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.4 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m2.
