Specifications
Model NO. :
SXF030 - 07
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Drying
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
600*600*900mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1954*1800*2090mm(W*D*H)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

1.Overview:

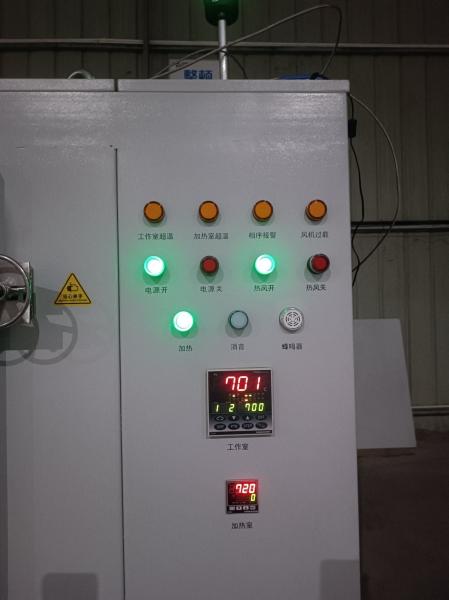

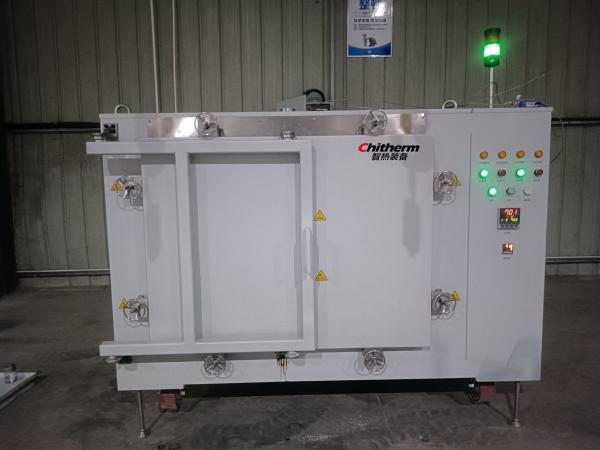

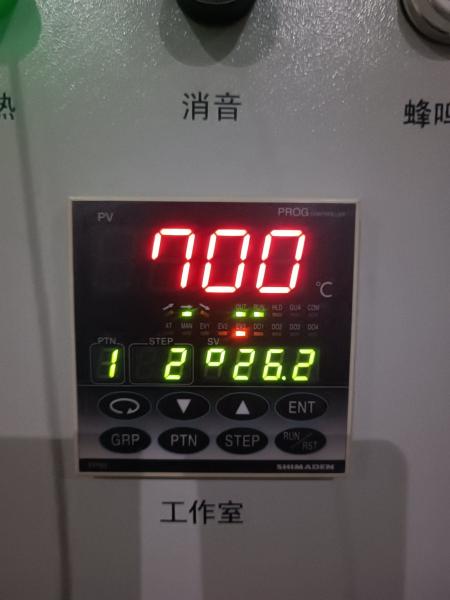

The SXF030-07 type glue-discharging box furnace is mainly designed for drying, degumming, curing and other processes of electronic ceramics, glass, electronic components and other electronic products. It can also be used for heat treatment processes of other products. The equipment adopts a fully stainless steel furnace structure, with stainless steel heating tubes heating evenly from both sides of the furnace chamber. An internal centrifugal fan performs hot air stirring, horizontal air movement, and centrifugal air supply. The whole furnace is insulated with fiber material, and an imported single-loop intelligent temperature controller is used for control.

2.Performance Parameters
Product Model: SXF030-07 type
Operating Temperature: RT to 700°C
Effective Furnace Size: 600×600×9000 (W×H×D) mm
Furnace Material: SUS310S Stainless Steel
Heating Element: Stainless Steel Heating Tube
Temperature Uniformity in Furnace: ±6°C (at 600°C platform)
Temperature Control Sections: 4×10 sections
Control Points: 1 point
Detection Points: 1 point
Alarm Protection: Over-temperature, open circuit, fan overload, etc., with audible and visual alarms and protection
Surface Temperature Rise: ≤30°C
Maximum Heating Power: About 45Kw;
Typical Insulation Power for Empty Furnace: ≤22Kw
Power Supply: Three-phase, 380VAC, 50Hz, 60KVA
Weight: About 1500Kg
External Dimensions: About 1954×1800×2090 (W×D×H)

700 ordm C Sxf030 07 Type Glue Discharging Box Type Electric Furnace Air Atmosphere Atmosphere Certified by ISO ISO Certified
700 ordm C Sxf030 07 Type Glue Discharging Box Type Electric Furnace Air Atmosphere Atmosphere Certified by ISO ISO Certified



3. Delivery List
Item Note Qty.
Basic Components Furnace 1 unit
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Stainless Steel Heating Tube 1 SET
Temperature Controller 2 SET
heated air motor 1 SET
Spare Parts SSR 1 pcs
Stainless Steel Heating Tube 1 PC
4. Normal Operating Conditions
1.Environmental Conditions: Temperature 0 to 40°C, humidity ≤80% RH, no corrosive gases, no strong air disturbance;
2. Ventilation System: Non-contact connection to the user's extraction system, with an extraction capacity greater than 20 m³/h;
3. Floor Requirements: Level, no significant vibration, load-bearing capacity >300 Kg/m²;
4. Power Requirements: Capacity greater than 60 kVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Earth wire: Green/Yellow;
5. Installation Site: 2500mm × 3500mm × 3000mm (W × D × H), installation area should be greater than 9m².

700 ordm C Sxf030 07 Type Glue Discharging Box Type Electric Furnace Air Atmosphere Atmosphere Certified by ISO ISO Certified
