Specifications
Model NO. :
HBF105-14
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Effective Chamber Dimensions :
400*330*800mm(W*H*D)
Setter Plate :
Corundum-Mullite
Transport Package :
Wooden Package
Specification :
850*900*1200mm (W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
I. Equipment Name and Model:
HBF105-14 Sintering Furnace

II. Technical Indicators and Basic Configuration
2.1 Rated Temperature: 1300°C;
2.2 Maximum Temperature: 1500°C;
2.3 Effective Dimensions: 400×330×800mm (Width×Height×Depth);
2.4 Supporting Device: Corundum-mullite supporting and firing plate;
2.5 Detection Method: Reserved installation holes for thermocouples and temperature monitoring holes;

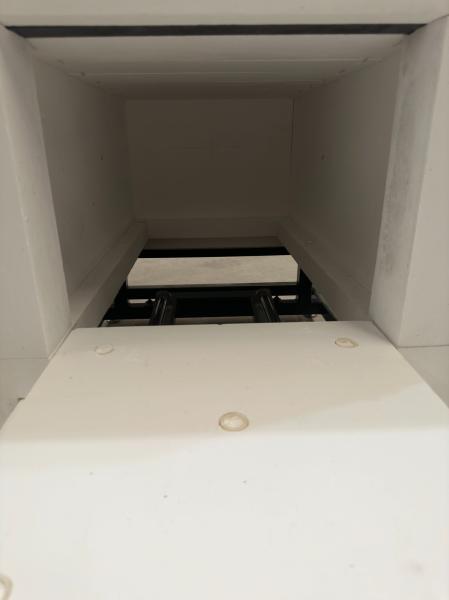

2.6 Refractory Materials: Polycrystalline mullite products are selected for the inner layer, and ceramic fiber boards are used for auxiliary heat insulation in the outer layer;
2.7 External Dimensions: 850×900×1200mm (Width×Height×Depth);
2.8 External Color of the Equipment: Light gray.

III. General Technical Description

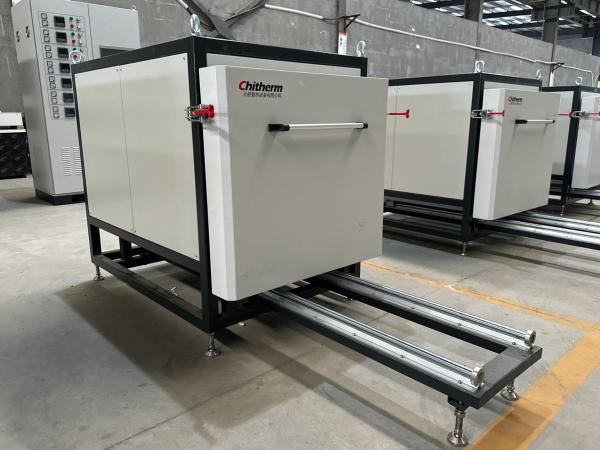

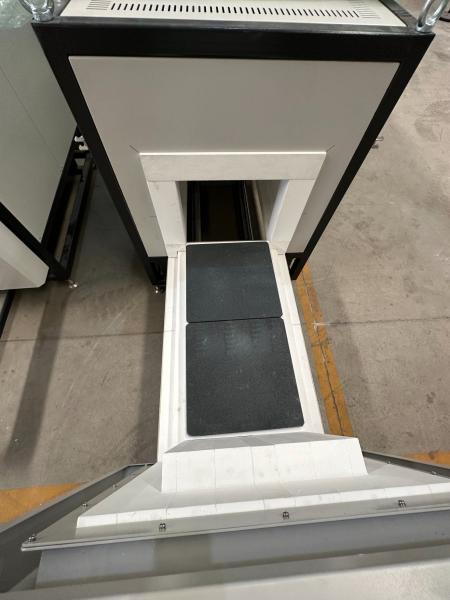

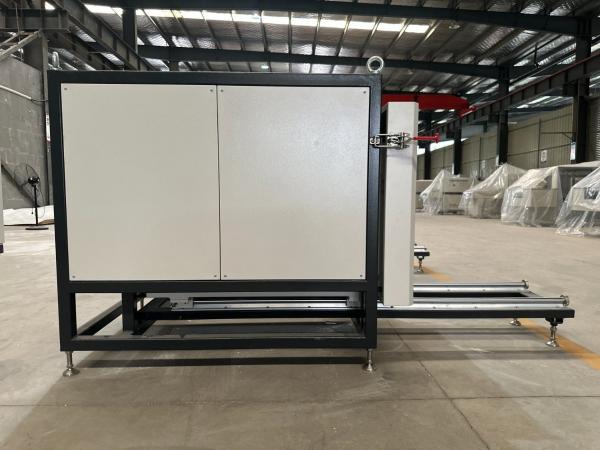

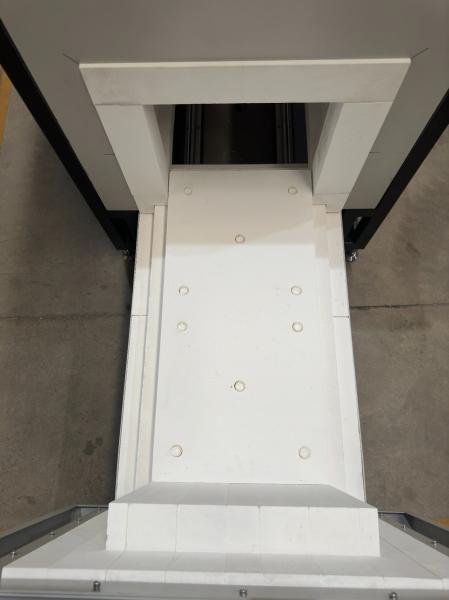

The equipment is mainly composed of the furnace body component, the furnace chamber component, and the trolley component. Figure 1 shows the schematic diagram of the equipment structure. The actual appearance shall be subject to the final product. The entire furnace body is assembled and welded by profiles, and the outer surface is treated with high-temperature plastic spraying; the hanging plate is bent and welded by high-quality sheet metal, and the outer surface is also treated with high-temperature plastic spraying.
The entire exterior of the furnace body is protected by the hanging plate.
Electric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400*330*800mm and Electric Fuel
Figure 1 Schematic Diagram of the Equipment Structure
Electric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400*330*800mm and Electric FuelElectric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400*330*800mm and Electric Fuel
